Gumstix Overo Fire میکرو کامپیوتر

  • System-on-Chip (SoC): OMAP 3530
  • 600 MHz ARM Cortex-A8 with NEON SIMD Coprocessor
  • 430 MHz TMS320C64x+ DSP (fixed point, six parallel vector units)
  • 110 MHz SGX GPU
  • RAM: 256MB mDDR (2.7 GByte/s)
  • Flash: 256MB NAND
  • Wi2wi W2CBW003 System-in-Package
  • Wifi 802.11b/g
  • Bluetooth 2.0 EDR
  • Peripherals: 2x USB 2.0, SPI, I2C, PWM, ADC
  • on-board microSD/SDHC card slot (tested with 8 GB)
  • Size: 17mm x 58mm x 4.2mm (0.67 in. x 2.28 in. 0.16 in.)

Gumstix Overo Fire میکرو کامپیوتر به همراه نمایشگر / کارت حافظه / برد راه انداز و دو عدد دوربین قابل اتصال به برد

  • System-on-Chip (SoC): OMAP 3530
  • 600 MHz ARM Cortex-A8 with NEON SIMD Coprocessor
  • 430 MHz TMS320C64x+ DSP (fixed point, six parallel vector units)
  • 110 MHz SGX GPU
  • RAM: 256MB mDDR (2.7 GByte/s)
  • Flash: 256MB NAND
  • Wi2wi W2CBW003 System-in-Package
  • Wifi 802.11b/g
  • Bluetooth 2.0 EDR
  • Peripherals: 2x USB 2.0, SPI, I2C, PWM, ADC
  • on-board microSD/SDHC card slot (tested with 8 GB)
  • Size: 17mm x 58mm x 4.2mm (0.67 in. x 2.28 in. 0.16 in.)

Jetson TK1 Development Kit مینی کامپیوتر با ۱۹۲ هسته CUDA و پردازشگر GPU

The NVIDIA Jetson TK1 developer kit gives you everything you need to unlock the power of the GPU for embedded systems applications.

It's built around the revolutionary NVIDIA Tegra® K1 SoC and uses the same NVIDIA Kepler™ computing core designed into supercomputers around the world. This gives you a fully functional NVIDIA CUDA® platform for quickly developing and deploying compute-intensive systems for computer vision, robotics, medicine, and more.

NVIDIA delivers the entire BSP and software stack, including CUDA, OpenGL 4.4, and Tegra-accelerated OpenCV. With a complete suite of development and profiling tools, plus out-of-the-box support for cameras and other peripherals, NVIDIA gives you the ideal solution for helping shape the future of embedded on our Jetson Embedded Portal.

- See more at: http://www.nvidia.com/object/jetson-tk1-embedded-dev-kit.html#sthash.IeKV1VKI.dpuf

Overo Series Chestnut43 Board برد توسعه پورت های میکرو کامپیوتر های Gumstix

Overo Series Chestnut43 Board

برد استخراج پورت های میکرو کامپیوترهای Gumstix

برد Beetle RP2040 Mini

Beetle RP2040 Mini Development Board



برد بیگل بن بلک REV.C

AM3358BZCZ BeagleBone Black Sitara™ MPU ARM® Cortex®-A8 Embedded Evaluation Board

برد بیگل بن بلک مجهز به وای فای و بلوتوث

BeagleBone Black Wireless، بیگل بن بلک وایرلس با پردازنده کرتکس A8 و مجهز به ارتباط وایفای و بلوتوث

BEAGLEBOARD  BBBWL-SC-562  BeagleBone Black Wireless,

WiFi and Bluetooth, AM335x

برد بیگل بن سبز (ساخت seeed تکنولوژی)

AM3358BZCZ BeagleBone Green Sitara™ MPU ARM® Cortex®-A8 Embedded Evaluation Board

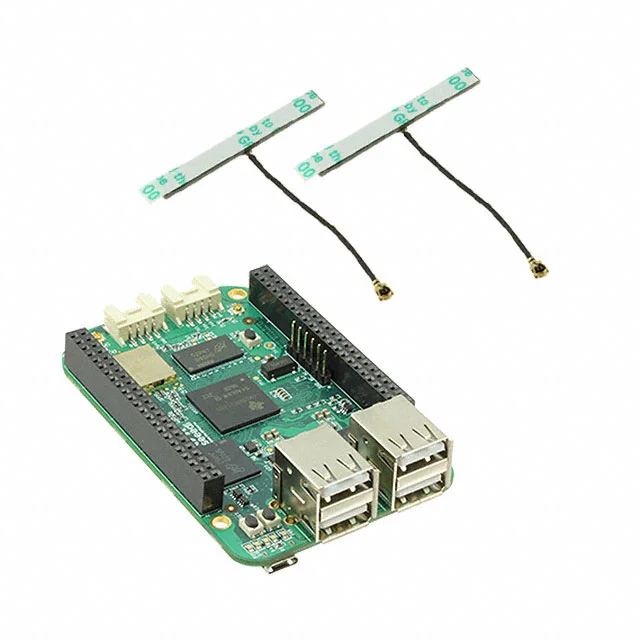

برد بیگل بن سبز وایرلس (ساخت seeed تکنولوژی)

AM3358BZCZ BeagleBone Green Wireless (BBGW) Sitara™ MPU ARM® Cortex®-A8 Embedded Evaluation Board

برد رسپبری پای 3 مدل B پلاس دارای هسته پردازنده 64 بیتی ، وایفای و بلوتوث داخلی

محصول جدید بنیاد رسپبری پای با نام رسپبری پای 3 مدل B Plus، دارای پردازنده Broadcom BCM2837B0, Cortex-A53 1.4GHz، رم 1GB LPDDR2 SDRAM، وای فای دو بانده 2.4 گیگاهرتز و 5 گیگاهرتز، بلوتوث 4.2، گیگابیت اترنت

 Made in United Kingdom

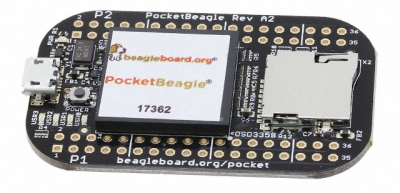

برد PocketBeagle

OSD3358 PocketBeagle - MPU ARM® Cortex®-A8 Embedded Evaluation Board



What is PocketBeagle?

PocketBeagle is an ultra-tiny-yet-complete open-source USB-key-fob computer. PocketBeagle features an incredible low cost, slick design and simple usage, making PocketBeagle the ideal development board for beginners and professionals alike.

Processor: Octavo Systems OSD3358 1GHz ARM® Cortex-A8

  • 512MB DDR3 RAM integrated
  • Integrated power management
  • 2×32-bit 200-MHz programmable real-time units (PRUs)
  • ARM Cortex-M3

Summary of Key Features

  • Low cost Linux computer with tremendous expansibility
  • Opportunity to learn many programming aspects from educators on-line
  • Openness and flexibility tear-down limits on your imagination

Summary of Technical Specifications

  • Based on new Octavo Systems OSD3358-SM 21mm x 21mm system-in-package that includes 512MB DDR3 RAM, 1-GHz ARM Cortex-A8 CPU, 2x 200-MHz PRUs, ARM Cortex-M3, 3D accelerator, power/battery management and EEPROM
  • 72 expansion pin headers with power and battery I/Os, high-speed USB, 8 analog inputs, 44 digital I/Os and numerous digital interface peripherals
  • microUSB host/client and microSD connectors



برد پردازنده DSP/TMDSEVM6670LE پردازشگر سیگنال های مخابراتی و تصویری

این برد ۴ هسته ای (سری مالتی core) مناسب عملیات پردازش تصویر و پردازش سیگنال است که می تواند عملیات محاسباتی پیچیده را بصورت پردازش های موازی در کمترین مدت زمان انجام دهد.

نرم افزار مناسب جهت کار کردن با این برد Code Composer Studio است.

این مدل برد همراه با JTAG XDS560V2  عرضه می شود.

حافظه SSD مینی کامپیوتر UP Squared با ظرفیت ۱۲۸ گیگابایت

mSATA 128GB SATA

mSATA 128GB SATA III MLC Full-size  S11+Micron L06  0~70℃ with 2pcs M2.3mm

screws and ESD Bag packing  SSDPB-I4000-128

دانگل وای فای مینی کامپیوترهای UP-Board

USB WiFi dongle (BL-WN2210)

USB WiFi dongle 802.11 b/g/n

شیلد 3G+WiFi+BT مینی کامپیوتر های آپ برد با کاربرد IoT

Enable your UP board into a IoT gateway.

With this module, you can add mini-PCI-express 3G/4G module and wifi+bluetooth module.

UP-3GHAT rev 0.2,UP 3G HAT with SIM Slot,include USB Cable

شیلد توسعه رسبری پای Pi B+/2B/3B

Expansion Shield x600 for Raspberry Pi B+/2B/3B

شیلد وای فای WiFi kit مینی کامپیوتر های UP Squared

M.2 2230 WiFi kit for UP Squared metal Chassis

Intel Dual Band Wireless-AC 3165, 1x1 AC + BT 4.2, M.2 2230 with

2X External Antennas 2400 MHz-2500 MHz & 5150MHz-5875MHz
and 2 X RF Cable Ø1.13mm,RP SMA Jack-IPEX 4 ,L=150mm



شیلد وای فای WiFi kit مینی کامپیوترهای UP Squared

M.2 2230 WiFi kit for UP Squared ABS Chassis

Intel Dual Band Wireless-AC 3165, 1x1 AC + BT 4.2, M.2 2230 with integrated Antennas 2.4GHz/5GHz PCBDipole Ant coaxcbl to IPEX MHF4,Ø1.13 L:100mm,
