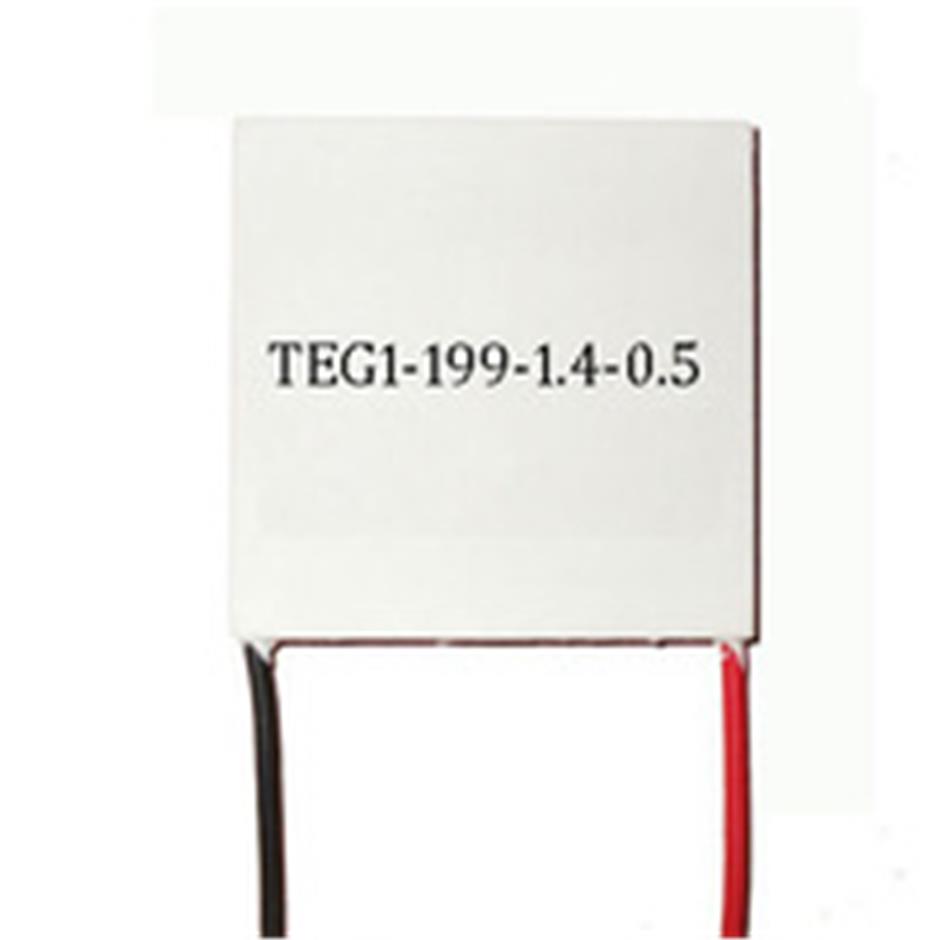

TEG1-199-1

Teg1-199-1.4-0.5for the thermoelectric power generation sheet total PN junction logarithm
1.4 P junction N junction cross-sectional area of individual particle size of 1.4 * 1.4mm
0.5 for P junction N junction individual particle height 0.5mm

TEG1-199-1

Features:


Teg1-199-1.4-0.5for the thermoelectric power generation sheet total PN junction logarithm
1.4 P junction N junction cross-sectional area of individual particle size of 1.4 * 1.4mm
0.5 for P junction N junction individual particle height 0.5mm
Interpretation of electrical performance parameters
The following data is stable and sustainable difference in temperature of 120 degrees under test
the environment is different, the data will be different, for reference
Dimensions: 44mmx40mmx3mm
Open circuit voltage: 11.1 volts
Matched load resistance: 3.07 ohms
Match load output voltage: 5.6 volts
Output Current: 1.8 amperes
Output power: 10 watts
Heat flow through the module: about 192 watts
Heat flux: about 12.0 watts / cm2
