BMP085 Breakout

BMP085 Breakout

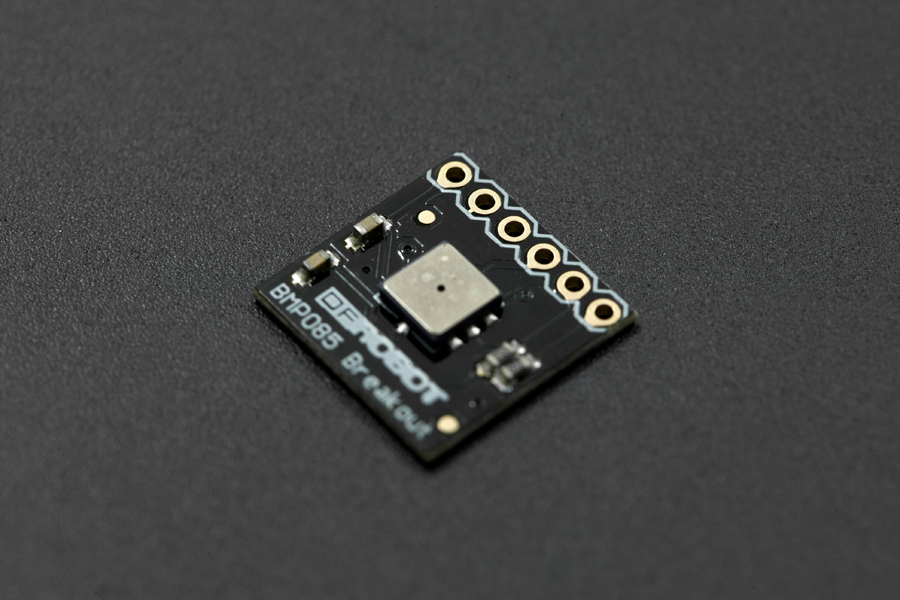

This is a simple breakout board for the BMP085 high-precision, low-power barometric pressure sensor from DFRobot. The BMP085 offers a measuring range of 300 to 1100 hPa with an absolute accuracy of down to 0.03 hPa. It's based on piezo-resistive technology for EMC robustness, high accuracy and linearity as well as long term stability. This sensor supports a voltage supply between 1.8 and 3.6VDC. It is designed to be connected directly to a micro-controller via the I2C bus





This breadboard-friendly board breaks out all pins of the BMP085 to a 6-pin 0.1" pitch header. The analog and digital supplies (VDDD and VDDA) of the BMP085 are tied together and broken out to a single pin. We've also put two 4.7k pull-up resistors on the I2C lines.
  • Digital two wire (I2C) interface
  • Wide barometric pressure range
  • Flexible supply voltage range
  • Ultra-low power consumption
  • Low noise measurement
  • Fully calibrated
  • Temperature measurement included
  • Ultra-flat, small footprint
  • Dimensions:16 x 16 mm (0.63 x 0.63")



نظرات کاربران درباره BMP085 Breakout

نظری در مورد این محصول توسط کاربران ارسال نگردیده است.
اولین نفری باشید که در مورد BMP085 Breakout نظر می دهد.

ارسال نظر درباره BMP085 Breakout

لطفا توجه داشته باشید که ایمیل شما منتشر نخواهد شد.

کد امنیتی *
captcha

برچسب های مرتبط با BMP085 Breakout

BMP085 Breakout BMP085 ماژول فشار و ارتفاع
قیمت: 1,391,000 ریال
کد محصول SEN-BAR-14
وضعیت موجودی موجود
