برد پردازنده 32 بیتی رنساس RX62N
سایر تصاویر محصول

برد پردازنده 32 بیتی رنساس RX62N

دست دوم، بدون کابل

صحت عملکرد توسط کارشناسان فنی شرکت تضمین می شود.

RX621/RX62N Group microcontrollers have 100 MHz high-speed operation and enhanced communications functions. They have built-in Ethernet (RX62N only), CAN, and two circuits of USB 2.0 host controller. A multifunction timer (MTU2, 2 units), 10-bit or 12-bit A/D converter, DMA controller, and other peripheral functions are incorporated ona single chip. Up to 512 KB flash memory and 96 KB RAM are built in, as well as 32 KB of flash memory for data storage. Packages from 85 to 176 pins are available.

برد پردازنده 32 بیتی رنساس RX62N

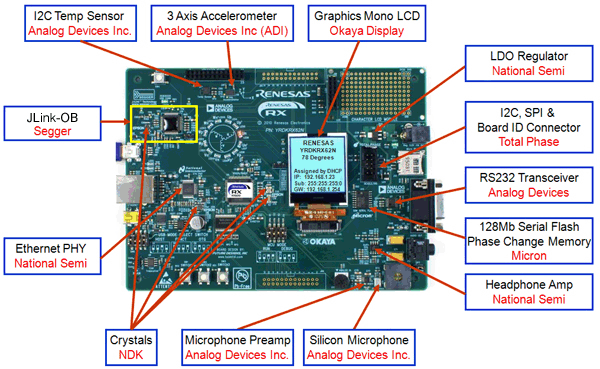

The Renesas Demonstration Kit (RDK) for RX62N is an evaluation and demonstration tool for Renesas RX62N microcontrollers. The goal is to provide the user with a powerful debug and demonstration platform targeted at common applications. The board also provides a useful platform for evaluating the Renesas suite of development tools for coding and debugging, using the High-performance Embedded Workshop (HEW) IDE as well as programming the device using the on-board SEGGER J-Link JTAG debugger.



The Renesas Demonstration Kit for RX62N is also the hardware platform that is included in a special RX62N-specific edition of Micrium's book on the µC/OS-III Real Time Kernel. The book and board combo targets serious programmers and college students who need to understand and create programs based on the timesaving features of a real-time kernel. Part I of the text covers the internals of the new µC/OS-III real-time kernel. The emphasis is on the internals, features, API calls, and where and how to use an RTOS, all presented in a clear and useful way, and accompanied by a wealth of diagrams. Part II provides specific examples for using µC/OS-III on the new Renesas RX62N microcontroller.

Key Features:

RX62N

ITEM RX62N
CPU core

RX CPU

  • General registers: 32-bit x 16
  • Multiplier: 32-bit multiplier
  • Divider: Yes
  • Multiply-accumulator: Yes (two types: memory-to-memory operations and register-to-register operations)
  • Memory-protection unit (MPU)
Maximum operating frequency 100MHz
Power supply voltage 2.7 to 3.6V
Floating-point processing unit Single-precision floating-point processing unit
(Supports add/subtract/compare/multiply/divide and other instructions)
Program Flash Max. 512KB
Data Flash 32KB
SRAM Max. 96KB
On-chip peripheral functions
  • Direct memory access controller (DMAC) x 4 channels
  • Data transfer controller (DTC)
  • Direct memory access controller designed exclusively (EXDMAC)
    x 2 channels (Over 144-pin PKG Only)
  • 16-bit multifunction timer pulse unit (MTU2) x 12 channels
  • Port output enable
  • 16-bit compare match timer x 4 channels
  • 8-bit timer (TMR) x 4 channels
  • 4-bit Programmable pulse generator (PPG) x 2 channels (max)
  • 14-bit Independent watchdog timer (IWDT)
  • 8-bit Watchdog timer (WDT)
  • Realtime clock (RTC)
  • Serial communication interface (SCI) x 6 channels
  • I2C bus interface:Except 100-pin [2 channels], 100-pin [1channel]
  • Serial peripheral interface (RSPI) x 2 channels
  • SDRAM interface (max. 32-bit width;Over 144-pin PKG Only)
  • A/D converter (10-bit) x 8 channels [4 channels x 2 units] or (12-bit) x 8 channels [8 channels x 1 unit] (12-bit and 10-bit can not use at the same time.)
  • D/A converter (10-bit): Except 100-pin [2 channels], 100-pin [1channel]
  • USB2.0FullSpeed: 176-pin [2 channels, H/F/OTG], Except 176-pin [1channel, H/F/OTG]
  • CAN x 1 channel
  • EtherC with dedicated DMAC x 1 channel
  • CRC calculator
  • Low-speed on-chip oscillator (OCO)
  • Power-on reset circuit (POR)
  • Voltage detection circuit (LVD)
On-chip debugging function Yes (with trace function)
Low power consumption modes

4 modes

  • Sleep mode
  • All-module clock stop mode
  • Software standby mode
  • Deep software standby mode
Packages PLQP0100KB-A (100-pin LFQFP, 14 x 14mm 0.5mm pitch)
PLQP0144KA-A (144-pin LFQFP, 20 x 20mm 0.5mm pitch)
PLBG0176GA-A (176-pin LFBGA, 13 x 13mm 0.8mm pitch)
PTLG0145JB-A (145-pin TFLGA, 9 x 9mm 0.65mm pitch)



نظرات کاربران درباره برد پردازنده 32 بیتی رنساس RX62N

نظری در مورد این محصول توسط کاربران ارسال نگردیده است.
اولین نفری باشید که در مورد برد پردازنده 32 بیتی رنساس RX62N نظر می دهد.

ارسال نظر درباره برد پردازنده 32 بیتی رنساس RX62N

لطفا توجه داشته باشید که ایمیل شما منتشر نخواهد شد.

کد امنیتی *
captcha

برچسب های مرتبط با برد پردازنده 32 بیتی رنساس RX62N

Renesas RX62N برد پردازنده 32 بیتی رنساس RX62N
قیمت قبلی: 17,990,000 ریال
قیمت: 9,990,000 ریال
کد محصول STOCK-1
وضعیت موجودی موجود
