برد NXP LPC1768 V2.0 با نمایشگر 3.2 اینچ و پروگرامر روی برد

دست دوم، بدون کابل

صحت عملکرد توسط کارشناسان فنی شرکت تضمین می شود.

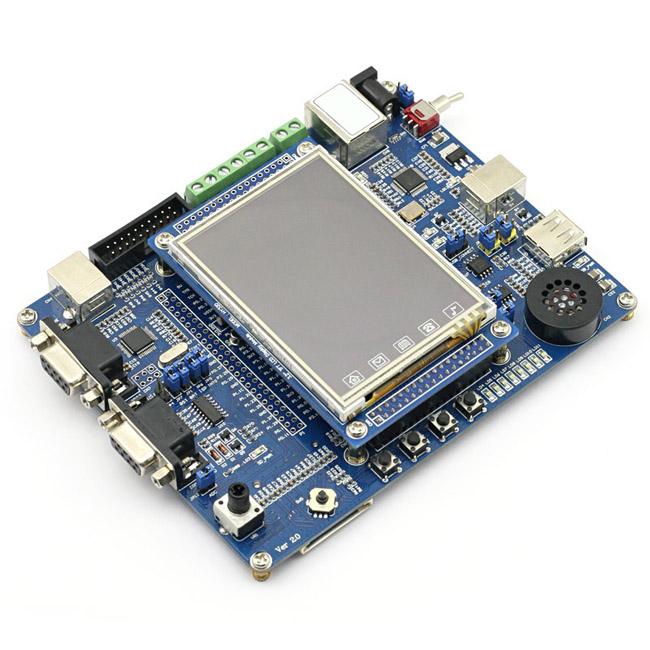

NXP LPC1768 V2.0 DevBoard + 3.2"TFT Color LCD + JLink on board

برد NXP LPC1768 V2.0 با نمایشگر 3.2 اینچ و پروگرامر روی برد

LandTiger development board with NXP LPC1768 ARM is a company based on second-generation ARM Cortex-M3 microcontroller core is designed for embedded system applications of high-performance, low-power 32-bit microprocessor for instrumentation, industrial communications, motor control, lighting control, alarm systems. Land Tiger development board on-board USB emulator, supports USB2.0 Device, dual CAN interfaces, RS-485 interface functions. Land Tiger development board supporting a wealth of routine and detailed information for users to quickly project development.



Features:


512KB on-chip Flash, to support ISP and IAP
64KB SRAM
processing rates 100MHz, and includes a support eight areas of memory protection unit (MPU)
Built-nested vector interrupt controller
AHB multi-layer matrix with 8-channel DMA controller, general-purpose (GPDMA)
support the SSP, UART, AD / DA, timer, GPIO, etc., can be used for memory to memory transfers
standard JTAG test / debug interface and debug serial line and serial line tracking port option
simulation trace module supports real-time tracking
4 low-power modes: sleep, deep sleep, power-down, deep power-down
single 3.3V power supply (2.4V - 3.6V)
Operating temperature: -40 ° C - 85 ° C
non-maskable interrupt (NMI) input
On-chip integrated power-on reset circuit
Built-in systems beat the timer (SysTick), to facilitate the operating system migration.

board resources:
1,2-Way RS232 serial interface (using the straight-through serial cable, serial port support them all the way ISP download)
2,2 Road CAN bus communication interface (CAN Transceiver: SN65VHD230)
3, RS485 communication interface (485 Transceivers: SP3485)
4, RJ45-10/100M Ethernet network interface (Ethernet PHY: DP83848)
5, DA output interface (USB sound card can do experiments on-board speaker and speaker output driver)
6, AD input interface (adjustable potentiometer input)
7, color LCD display interface (which can take 2.8-inch or 3.2-inch color TFT 320X240)
8, USB2.0 Interface, USB host and USB Device Interface.
9, SD / MMC card (SPI) interface (available with FAT12, FAT16, FAT32 file system)
10, IIC Interface (24LC02)
11, SPI serial FLASH interfaces (AT45DB161D)
12,2 user keys, 2 function keys and the INT0 Reset button, 8 LED lights
13,1 Five keys to enter the joystick (Joystick)
14, serial ISP download function (no need to set jumpers), the standard JTAG download, simulation debugging interface.
15, integrated USB emulator: simulation and debug capabilities to support online and support KEIL, IAR and other mainstream development environment.
16, optional external 5V power supply or USB input to provide 5V power supply.
17, leads all the IO, user-friendly external circuit to the secondary development of other applications.
