برد پردازش سیگنال صوتی و تصویری ZYBO ساخت شرکت DIGILENT به همراه دوربین Pcam 5C و SDSOC Voucher

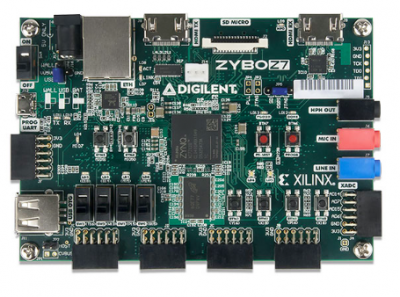

ZYBO Z7 EMBEDDED VISION BUNDLE
برد پردازش سیگنال صوتی و تصویری ZYBO ساخت شرکت DIGILENT به همراه دوربین Pcam 5C و SDSOC Voucher
Product Description

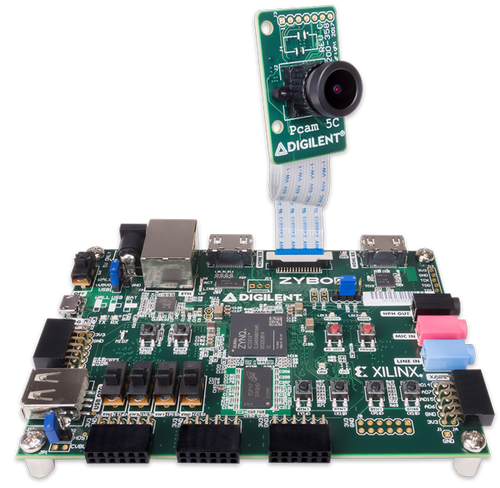

The Embedded Vision Bundle makes a valuable tool for anyone looking develop their own embedded vision products and applications, or to learn more about embedded vision concepts. The bundle includes the Zybo Z7-20 Zynq-7000 ARM/FPGA SoC development board, the Pcam 5C 5 megapixel color camera module, and the 15-pin flat-flexible cable (FFC). Data is transferred using the OmniVision OV5640 image sensor's native MIPI CSI-2 interface, resulting in extremely low latency. We've made this uniquely low-level camera solution available free and open-source on the Digilent Wiki, including D-PHY receiver, CSI-2 decoder, Bayer to RGB converter, and gamma correction IP.
Included in the kit:

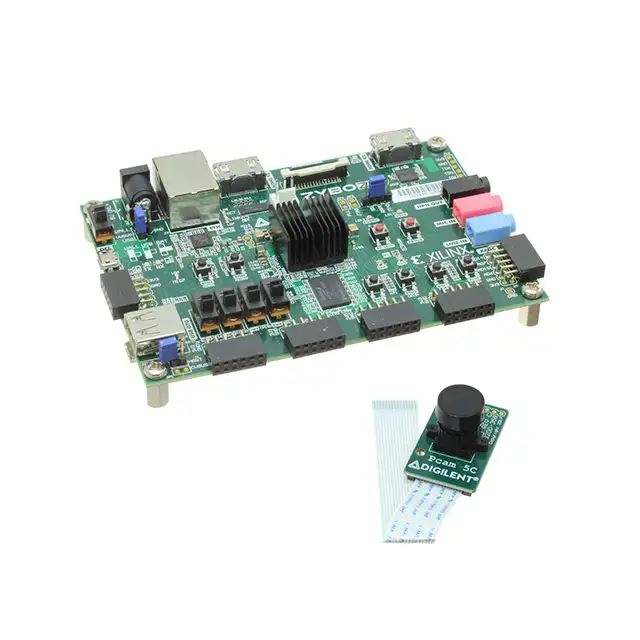

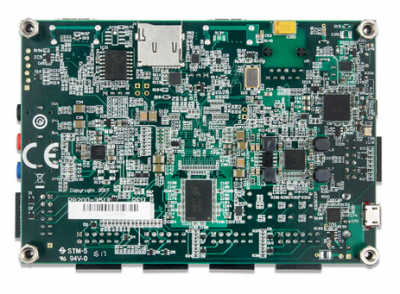

- Zybo Z7-20 Zynq-7000 ARM/FPGA SoC Development Board
- SDSoC Voucher

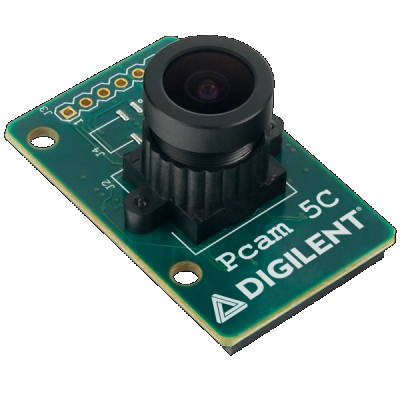

- Pcam 5C 5 MP Fixed Focus Color Camera Module
- 10 cm FFC Cable
- Factory Installed Fixed Focus Lens with M12 Lens Mount
Features:

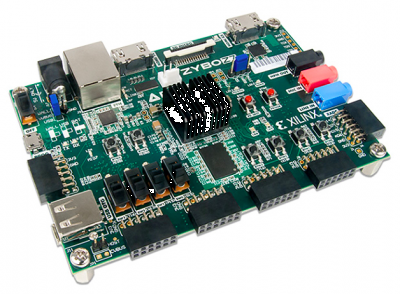

Zybo Z7 comes in two APSoC variants: Zybo Z7-10 features Xilinx XC7Z010-1CLG400C. Zybo Z7-20 features the larger Xilinx XC7Z020-1CLG400C. Users will select which variant they would like at checkout.
| Zybo Z7-10 | Zybo Z7-20 | |
| FPGA part | XC7Z010-1CLG400C | XC7Z020-1CLG400C |
| 1 MSPS On-chip ADC | Yes | Yes |
| Look-up Tables (LUTs) | 17,600 | 53,200 |
| Flip-flops | 35,200 | 106,400 |
| Block RAM | 270 KB | 630 KB |
| Clock Management Tiles | 2 | 4 |
| Available Shield I/O | 32 | 40 |
| Total Pmod Ports | 5 | 6 |
| Fan Connector | No | Yes |
| Zynq Heat Sink | No | Yes |
| HDMI CEC Support | TX port only | TX and RX ports |
| RGB LEDs | 1 | 2 |
-
ZYNQ Processor
-
667 MHz dual-core Cortex-A9 processor
-
DDR3L memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports
-
High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
-
Low-bandwidth peripheral controllers: SPI, UART, CAN, I2C
-
Programmable from JTAG, Quad-SPI flash, and microSD card
-
Programmable logic equivalent to Artix-7 FPGA
-
-
Memory
-
1 GB DDR3L with 32-bit bus @ 1066 MHz
-
16 MB Quad-SPI Flash with factory programmed 128-bit random number and 48-bit globally unique EUI-48/64™ compatible identifier
-
microSD slot
-
-
Power
-
Powered from USB or any 5V external power source
-
-
USB and Ethernet
-
Gigabit Ethernet PHY
-
USB-JTAG Programming circuitry
-
USB-UART bridge
-
USB 2.0 OTG PHY with host and device support
-
-
Audio and Video
-
Pcam camera connector with MIPI CSI-2 support
-
HDMI sink port (input) with CEC (Zybo Z7-20) and without CEC (Zybo Z7-10)
-
HDMI source port (output) with CEC
-
Audio codec with stereo headphone, stereo line-in, and microphone jacks
-
-
Switches, Push-buttons, and LEDs
-
6 push-buttons (2 processor connected)
-
4 slide switches
-
5 LEDs (1 processor connected)
-
2 RGB LEDs (Zybo Z7-20) and 1 RGB LED (Zybo Z7-10)
-
-
Expansion Connectors
-
6 Pmod ports (Zybo Z7-20) and 5 Pmod Ports (Zybo Z7-10)
-
8 Total Processor I/O
-
40 Total FPGA I/O (Zybo Z7-20) and 32 (Zybo Z7-10)
-
4 Analog capable 0-1.0V differential pairs to XADC
-
-
