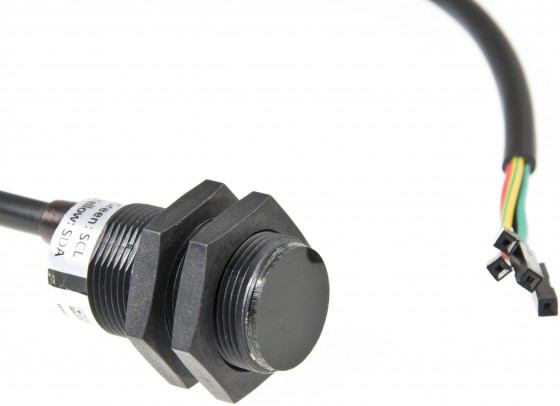

IR Tracking Camera

Description

• Small form factor IR camera with tracking up to four heat/IR sources
• Can be controlled with Arduino, AVR via I2C interface
• Easy to install and to connect
• Connections: Four wires with female sockets for power and I2C

IR Tracking Camera

Description

• Small form factor IR camera with tracking up to four heat/IR sources
• Can be controlled with Arduino, AVR via I2C interface
• Easy to install and to connect
• Connections: Four wires with female sockets for power and I2C

The IR Tracking Camera is a small form factor IR camera capable of tracking up to four heat/IR sources. The applications are plenty for example; tracking of robots with IR transmitters for navigation to light barriers, determining the direction where the object is going and working as a flame sensor or tracking heat sources. It is fully compatible with Arduino with only four wires. This infrared positioning camera can be controlled with Arduino, AVR via I2C interface. It is able to track mobile infrared points and transmit the data back to the host. The horizontal angle of the camera is 33 degrees while the vertical angle is 23 degrees. It returns up to four points at a time when it identifies an object.

Useful Links

PDF File

ZIP File
Arduino Sample Code
