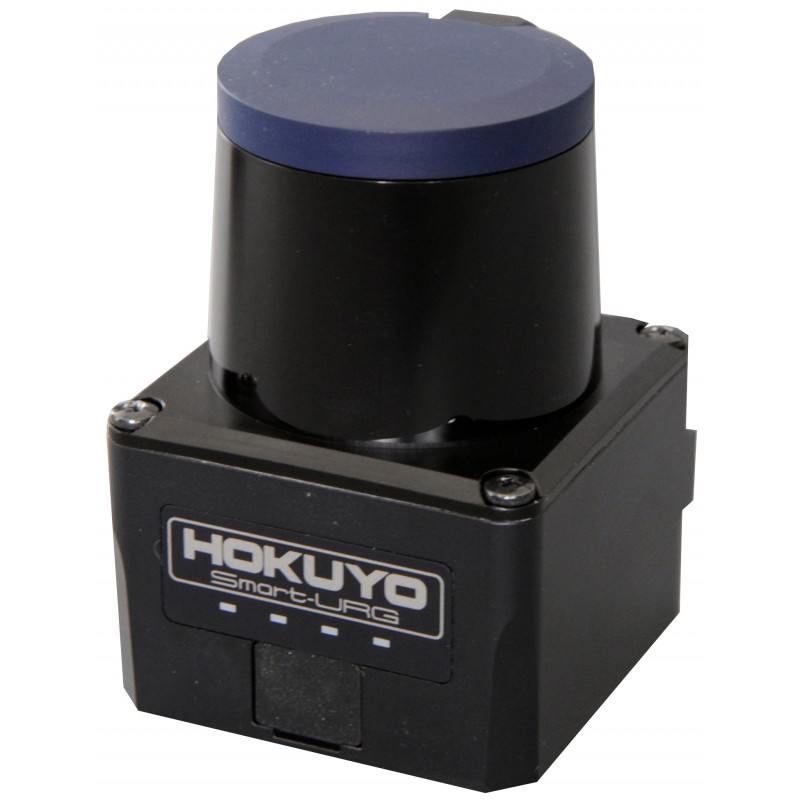

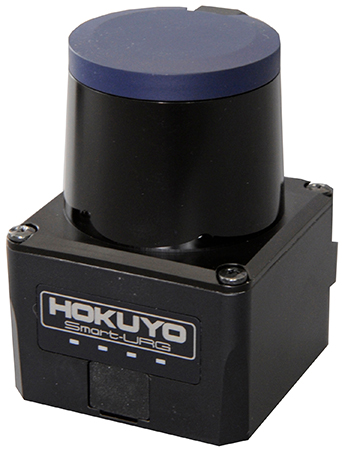

Hokuyo UST-20LX Scanning Laser Rangefinder

Hokuyo UST-20LX Scanning Laser Rangefinder

Description

• Small, accurate, high-speed scanning laser range finder
• Obstacle detection and localization of autonomous robots
• Light source: Laser semiconductor (905nm)
• Scan speed: 25ms (Motor speed 2400rpm)
• Detection distance: 60m (maximum)

The Hokuyo UST-20LX Scanning Laser Rangefinder is a small, accurate, high-speed device for obstacle detection and localization of autonomous robots and automated material handling systems. This model uses Ethernet interface for communication and can obtain measurement data in a wide field of view up to a distance of 20 meters with millimeter resolution. Due to its low power consumption, this scanner is able to be used on battery-operated platforms.

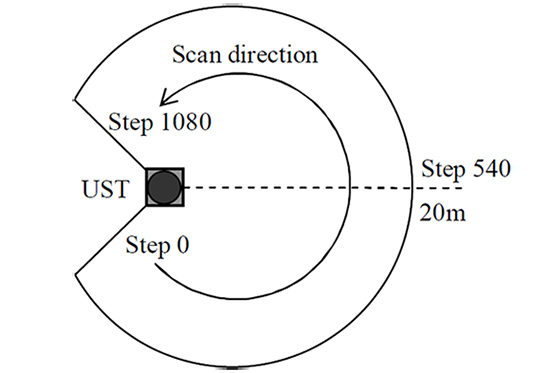

This sensor uses a laser source to scan 270° field of view. Positions of objects in the range are calculated with step angle and distance. Sensor outputs these data through communication channel.

Applications

• Navigation and obstacle detection (Guide path planning for mobile robots and autonomous systems)
• Object positioning (control docking processes of AGVs, AGCs)
• Object Profiling (cargo containers, pallets for loading & unloading)
• Object measurement and detection (volume of packages, pallets, flow measurement of bulk materials)
• Area monitoring (building security and entrance ways)

Specifications

• Supply voltage: 12VDC/24VDC (operation range 10 to 30V ripple within 10%)
• Supply current: 150mA or less (during start up 450mA is necessary)
• Accuracy: ±40mm
• Repeated accuracy: σ< 30mm
• Scan angle: 270°
• Scan speed: 25ms (Motor speed 2400rpm)
• Angular resolution: 0.25°
• Protective structure: IP65
• Interface: Ethernet 100BASE-TX
• Surrounding intensity: Less than 15,000lx
• Material front case: Polycarbonate
• Rear case: Aluminum
• Ambient temperature: -10°C to +50°C
• Ambient humidity: Below 85%RH (without dew, frost)
• Storage temperature: -30°C to +70°C
• Storage humidity: Below 85%RH (without dew, frost)
• Shock resistance: 196m/s2 (20G) X,Y and Z direction 10 times
• Input: IP reset input, photo-coupler input (current 4mA at ON)
• Output: Synchronous Output, photo coupler open collector output 30VDC 50mA (maximum)
• LED display: Power supply LED display (Blue): Blinks during start up and malfunction state
• Start up time: Within 10 sec (start up time differs if malfunction is detected during start up)

Light source

• Laser semiconductor (905nm)
• Laser class 1 (IEC60825-1:2007)

Detection range

• 0.06m to 20m (white Kent sheet)
• 0.06m to 8m (diffuse reflectance 10%)
• Maximum detection distance: 60m

Vibration resistance

• 10 to 55Hz double amplitude of 1.5mm for 2hrs in each X, Y, and Z direction
• 55 to 200Hz 98m / s2 sweep of 2min for 1hr in each X,Y and Z direction
• (Operating) 55 to 150Hz 19.6m / s2 sweep of 2min for 30min in each X,Y and Z direction

EMC standards
EMI

• EN61326-1: 2013
• EN55011: 2009 + A1: 2010

EMS

• EN61326-1: 2013
• EN61000-4-2: 2009
• EN61000-4-3: 2006 + A1: 2008 + A2: 2010
• EN61000-4-4: 2012
• EN61000-4-6: 2009
• EN61000-4-8: 2010

Useful Links

ZIP File

• Documentation

Dimensions

• Size: 50mm x 50mm x 70mm (sensor only)
• Weight: 130g (excluding cable)
