Flex Sensor 2.2" سنسور سنجش خمیدگی

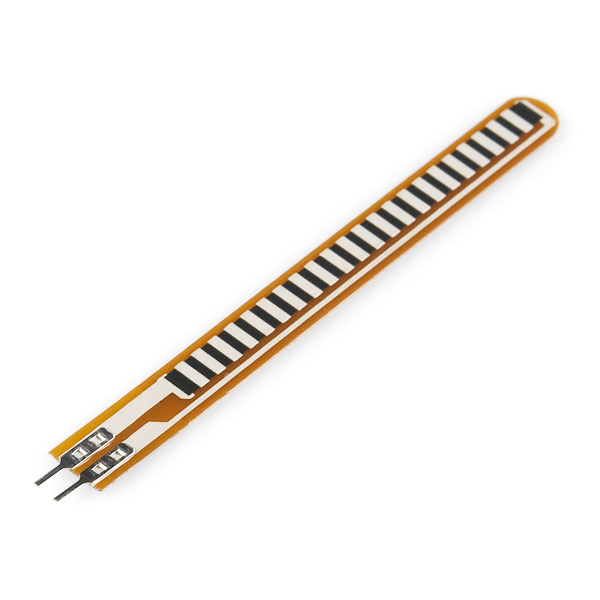

Description: A simple flex sensor 2.2" in length. As the sensor is flexed, the resistance across the sensor increases. Patented technology by Spectra Symbol - they claim these sensors were used in the original Nintendo Power Glove. I love the Nintendo Power Glove. It’s so bad!

Flex Sensor 2.2" سنسور سنجش خمیدگی

Description: A simple flex sensor 2.2" in length. As the sensor is flexed, the resistance across the sensor increases. Patented technology by Spectra Symbol - they claim these sensors were used in the original Nintendo Power Glove. I love the Nintendo Power Glove. It’s so bad!

The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on inside of bend).

Connector is 0.1" spaced and bread board friendly. Check datasheet for full specifications.

Note: Please refrain from flexing or straining this sensor at the base. The usable range of the sensor can be flexed without a problem, but care should be taken to minimize flexing outside of the usable range. For best results, securely mount the base and bottom portion and only allow the actual flex sensor to flex.

Documents:

نظرات کاربران درباره Flex Sensor 2.2" سنسور سنجش خمیدگی

avatar
امیر حسین علی نقی زاده
۲۳ خرداد ۱۳۹۸ ۱۱:۱۷:۰۶ ق.ظ
سلام.... ببخشید کی موجود میکنید ای سنسور رو؟ به شدت مورد نیاز هست

ارسال نظر درباره Flex Sensor 2.2" سنسور سنجش خمیدگی

لطفا توجه داشته باشید که ایمیل شما منتشر نخواهد شد.

کد امنیتی *
captcha

برچسب های مرتبط با Flex Sensor 2.2" سنسور سنجش خمیدگی

Flex Sensor 2.2" سنسور سنجش خمیدگی Flex Sensor 2.2 سنسور خمش Sensor
قیمت: 465,000 ریال
کد محصول SEN-FOR-1
وضعیت موجودی نا موجود
