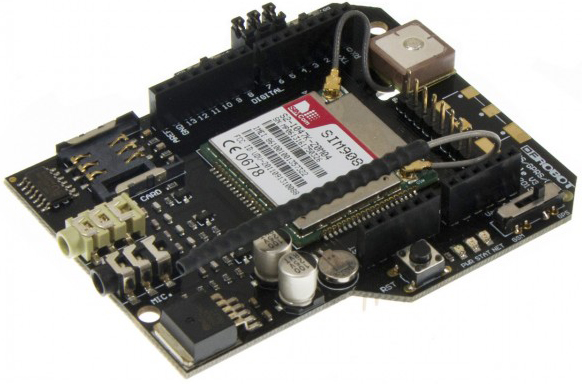

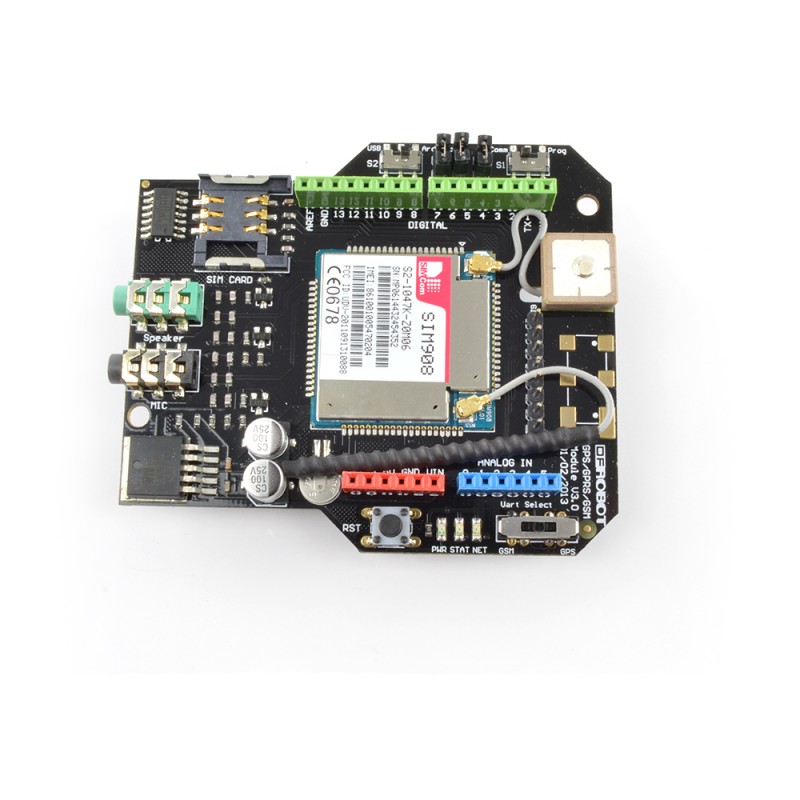

GPS/GPRS/GSM Arduino Shield
• Supports GPS technology for satellite navigation
• Embeded high-gain SMD antennas for GPS & GSM
• controlled via AT commands
• USB/Arduino control switch
• Programmable switch for Arduino
GPS/GPRS/GSM Arduino Shield
Description
• Supports GPS technology for satellite navigation
• Embeded high-gain SMD antennas for GPS & GSM
• controlled via AT commands
• USB/Arduino control switch
• Programmable switch for Arduino
The GPS/GPRS/GSM Arduino Shieldis with a Quad-band GSM/GPRS engine works on frequencies EGSM 900MHz/DCS 1800MHz and GSM850 MHz/PCS 1900MHz. It also supports GPS technology for satellite navigation. It's possible for your robot and control system to send messages and use the GSM network. It is controlled via AT commands (GSM07.07, 07.05 and SIMCOM enhanced AT Commands).
.jpg)
Specifications
• Low power consumption (100mA@7v - GSM mode)
• Quad-Band 850/900/18001900MHz
• GPRS multi-slot class 10
• GPRS mobile station class B
• Compliant to GSM phase 2/2+
• Class 4 (2 W @ 850/900 MHz)
• Class 1 (1 W @ 1800/1900MHz)
• Control via AT commands(GSM07.07, 07.05 and SIMCOM enhanced AT Commands)
• Directly support 4*4 button pad
• Buzzer for call notification
• LED indicators for power supply, network states and working modes
