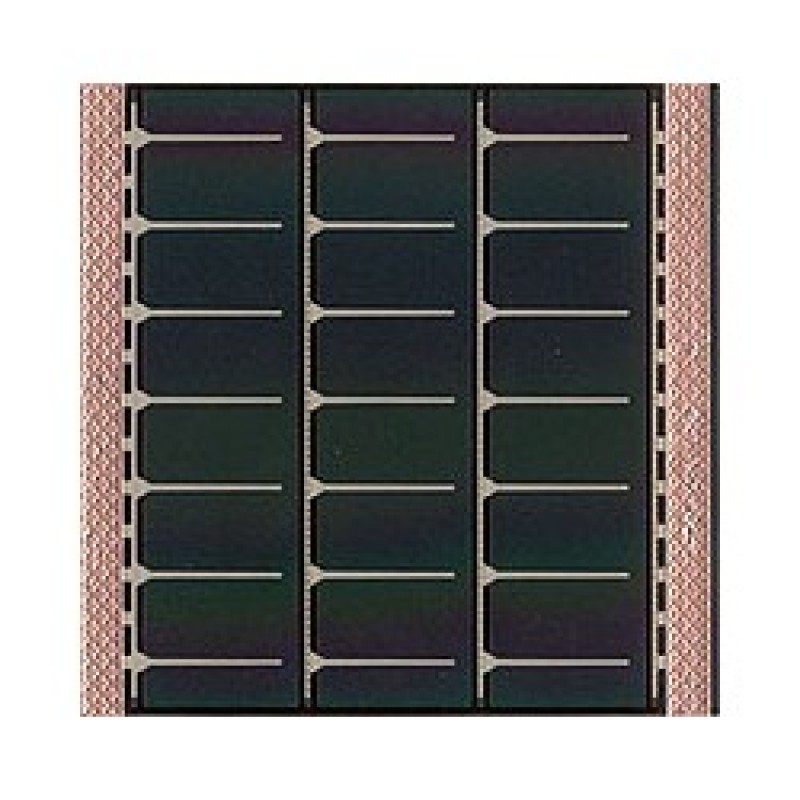

Flexible Photovoltaic Module 3.6V 50mA



Operating Voltage: 3.6V
Operating Current: 50mA
Typical Voc (Volt at open connector): 4.8V
Typical Isc (Ampere at short circuit): 60mA

Flexible Photovoltaic Module 3.6V 50mA

Description



Operating Voltage: 3.6V
Operating Current: 50mA
Typical Voc (Volt at open connector): 4.8V
Typical Isc (Ampere at short circuit): 60mA

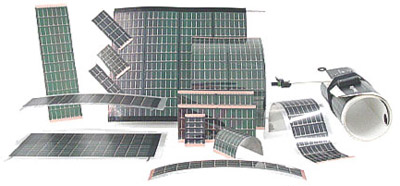

This module, in the Powerfilm® Wireless Electronics Series offers a new opportunity to solve the old problem of limited power for wireless electronics in both portable and remote electronic applications. PowerFilm® Wireless Electronics modules are lightweight, paper-thin, and durable. Their thin profile enables them to be easily integrated with devices for solar recharging or direct power. Modules have been specifically developed to recharge AA, AAA, 6-volt and 12-volt batteries. These modules do not have a UV-stabilized surface. For connection, just solder or crimp to the copper tape.

The PowerFilm® photovoltaic modules are based upon amorphous silicon technology applied to durable polymer substrate 2 mils (0.05mm) thick using a true roll-to-roll manufacturing process. Finished modules are encapsulated in a variety of materials appropriate for the application use environment.



Dimensions



• Aperture Size: 60mm x 75mm (2.4 x 3.0")
• Total Size: 74mm x 75mm (2.9 x 3.0")
• Total Thickness: 0.2mm (8mil)
• Weight : 1.6g (0.06oz)
