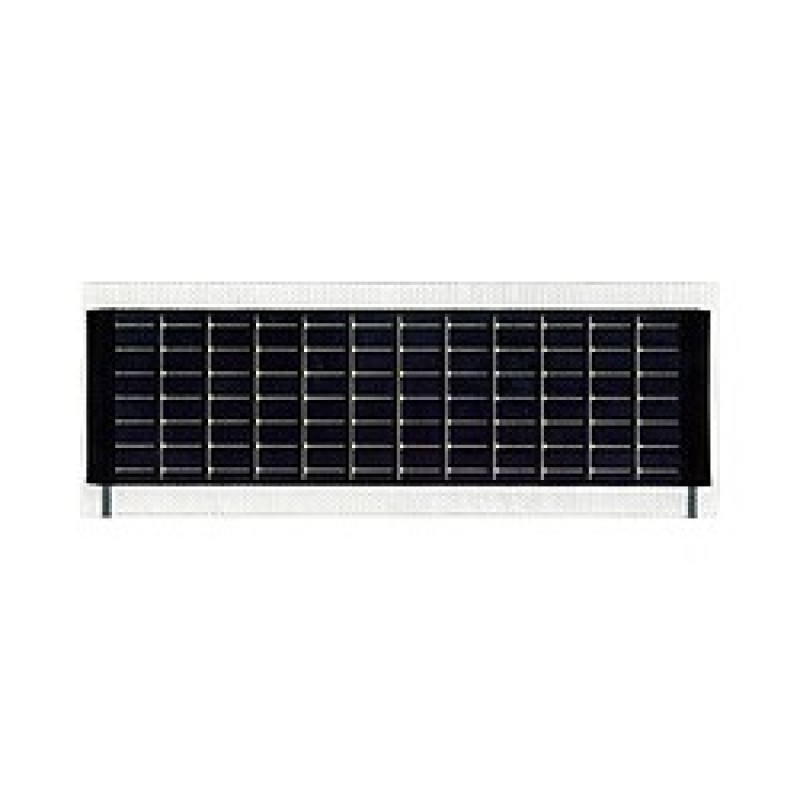

Flexible Photovoltaic Module WeatherPro 15.4V 50mA



Operating Voltage: 15.4V
Operating Current: 50mA
Typical Voc (Volt at open connector): 19V
Typical Isc (Ampere at short circuit): 60mA

Flexible Photovoltaic Module WeatherPro 15.4V 50mA

Description



Operating Voltage: 15.4V
Operating Current: 50mA
Typical Voc (Volt at open connector): 19V
Typical Isc (Ampere at short circuit): 60mA

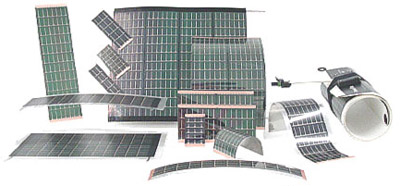

This module, in the Powerfilm® WeatherPro Series is the right choice for permanent outdoor applications that are directly exposed to the elements. The especially rugged construction of the Powerfilm® modules includes a UV-stabilized surface, extra edge seal for weather protection, and tin coated copper leads that extend from the module. Coating the leads with an RTV-silicon compound can provide a tightly sealed package.

The PowerFilm® photovoltaic modules are based upon amorphous silicon technology applied to durable polymer substrate 2 mils (0.05mm) thick using a true roll-to-roll manufacturing process. Finished modules are encapsulated in a variety of materials appropriate for the application use environment.



Dimensions



• Aperture Size: 240mm x 75mm (9.5 x 3.0")
• Total Size: 270mm x 100mm (10.6 x 3.9")
• Total Thickness: 1.1mm (44mil)
• Weight : 31.8g (1.1oz)
