9V 600mA Wireless Charging Module
- Wireless charging module
- Stable power supply
- Insulation coil
- Space-saving design
9V 600mA Wireless Charging Module
Description
- Wireless charging module
- Stable power supply
- Insulation coil
- Space-saving design

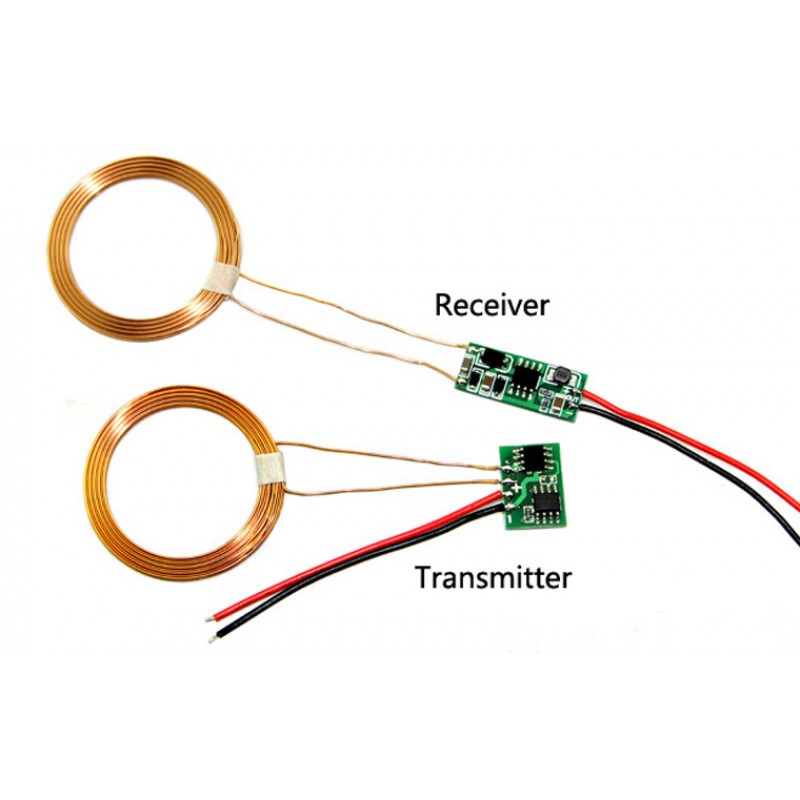

The 9V 600mA Wireless Charging Module can be applied in electronic equipments in common use for close wireless charging or power supply. Consisting of a transmitter and insulation coil, it can serve as a replacement for a wireless power supply with stable 9V output voltage and maximum 600mA output current. Its small in size and the insulation coil is more suitable for using in wireless projects.
What's Included
- 1x Receiver
- 1x Transmitter
Specifications
- Input voltage: 12Vdc
- Input voltage(limits): 13.5Vdc
- Output voltage: 9Vdc
- Output current(maximum): 600mA
- Transmitter coil inductance: 30uH
Dimensions
- Transmit-receive distance: 1-20mm
- Transmitter : 12mm x 7mm x 1mm
- Receiver: 15mm x 10mm x 1mm
- Coil diameter: 38mm
- Coil height: 2mm
کد محصول
BATT-WI-2
