5V 600mA Wireless Charging Module



  • 600mA Wireless charging module
  • Stable power supply
  • Insulation Coil
  • Space-saving design

5V 600mA Wireless Charging Module

Description



  • 600mA Wireless charging module
  • Stable power supply
  • Insulation Coil
  • Space-saving design

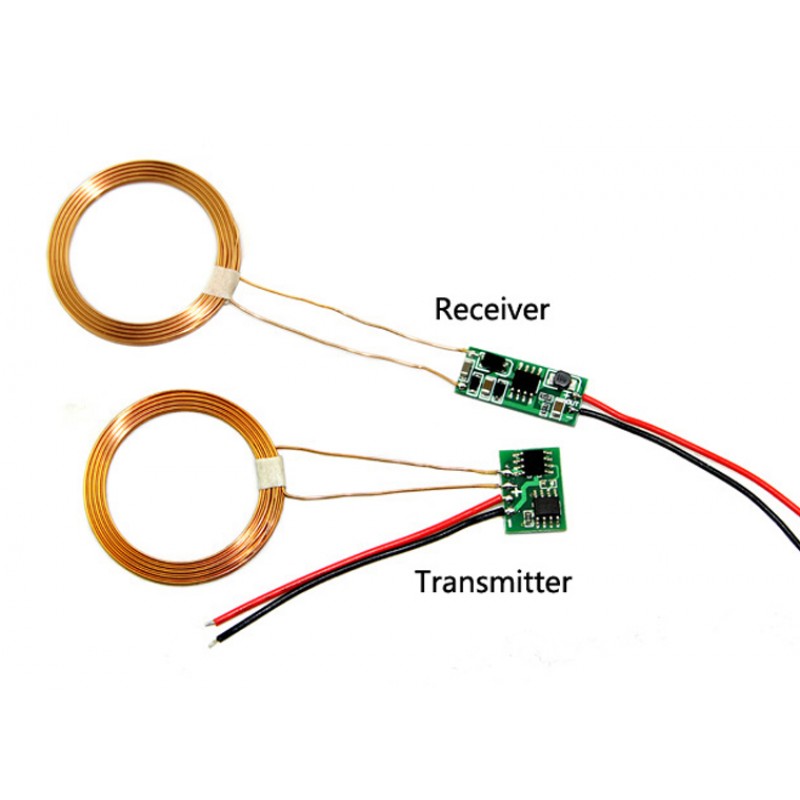

The Couple-01 5V 600mA Wireless Charging Module can be applied in electronic equipments in common use for close wireless charging or power supply. Consisted of a transmitter and insulation coil, it could serve as a replacement for the Wireless Power Supply with stable 5V output voltage and maximum 600mA output current. Its small size and insulation coil is more suitable for using in wireless project.



What's Included



  • 1x Receiver
  • 1x Transmitter



Specifications



  • Input voltage: 12Vdc
  • Input voltage(limits): 13.5Vdc
  • Output voltage: 5Vdc
  • Output current(maximum): 600mA
  • Transmitter coil inductance: 30uH
  • Transmit-receive distance: 1-20mm



Dimensions



  • Transmitter: 12mm x 7mm x 1mm
  • Receiver: 15mm x 10mm x 1mm
  • Coil diameter: 38mm
  • Coil height: 2mm
