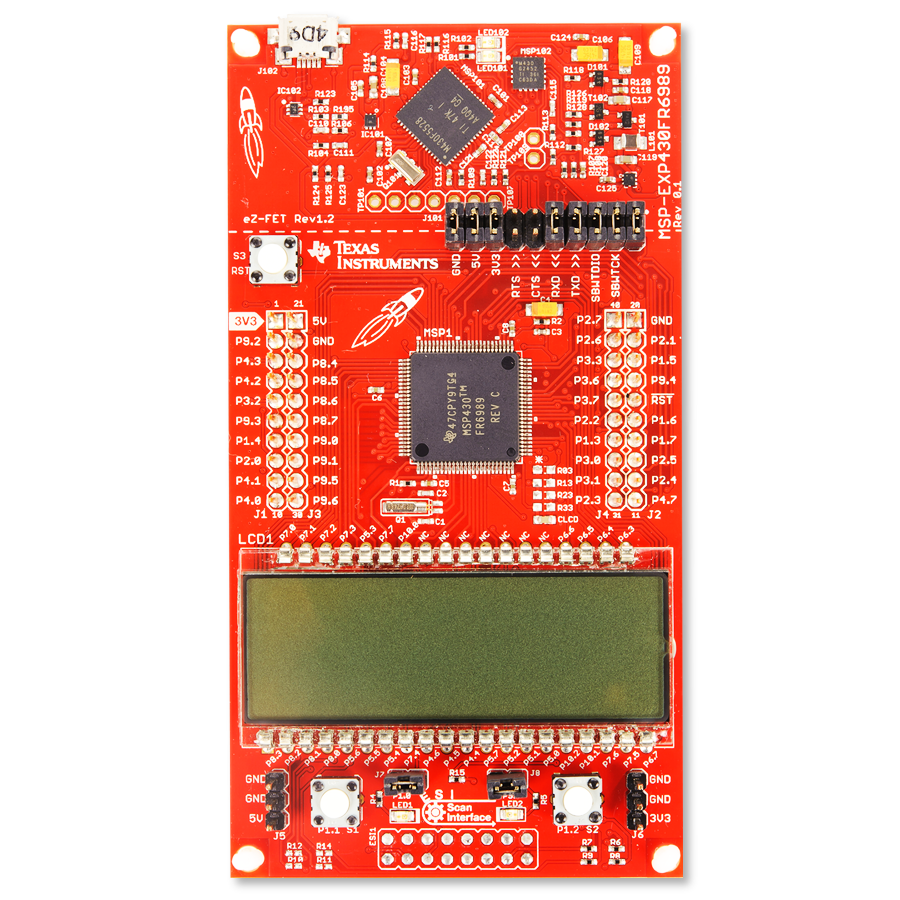

MSP-EXP430FR6989برد لانچپد

The MSP430FR6989 LaunchPad features on-board emulation and support for EnergyTrace++ support. This means you can program and debug your projects without additional tools and now have the capability to analyze power consumption down to the peripheral level.

MSP-EXP430FR6989برد لانچپد

On-board emulation

The MSP430FR6989 LaunchPad features on-board emulation and support for EnergyTrace++ support. This means you can program and debug your projects without additional tools and now have the capability to analyze power consumption down to the peripheral level.

BoosterPack-compatibility

The MSP430FR6989 LaunchPad features a 40-pin expansion header for connectivity to compatible boosterpacks that add additional functionality like wireless, displays & more.

What's included?

The MSP430FR6989 LaunchPad Development Kit includes everything you need to get started with MSP430FRx MCUs!

  • MSP430FR6989 LaunchPad
  • Mini-USB cable
  • Quick Start Guide

Why this LaunchPad?

  • Features the MSP430FR6989 MCU. This is an extremely integrated microcontroller in the MSP430FRx family.
  • It offers 128 KB of non-volatile FRAM for low-power datalogging and enhanced code security in a number of applications.
  • This LaunchPad also include integrated peripherals for sensing-based applications that include a 320-segment LCD controller, 12-bit differential ADC and a dual analog-front-end for rotation detection.

Microcontroller Features

  • 16-Bit RISC Architecture up to 16-MHz Clock
  • Wide Supply Voltage Range (1.8 V to 3.6 V)
  • Optimized Ultra-Low-Power Modes: – Active Mode: Approximately 100 μA/MHz - Standby Mode with RTC: Approximately 450 nA
  • 128 KB of Ultra-Low-Power Ferroelectric RAM (FRAM)
  • 32-Bit Hardware Multiplier (MPY)
  • Three-Channel Internal DMA
  • Real-Time Clock (RTC) With Calendar and Alarm Functions
  • Five 16-Bit Timers With up to Seven Capture/Compare Registers Each
  • 16-Bit and 32-Bit Cyclic Redundancy Checker
  • Extended Scan Interface (ESI) for Background Water, Heat, and Gas Volume Measurement
  • 16-Channel Analog Comparator
  • 12-Bit Analog-to-Digital Converter (ADC)
  • Integrated LCD Driver With Contrast Control for up to 320 Segments
  • 128-Bit or 256-Bit AES Security Encryption
  • Enhanced Serial Communication

BoosterPack connector

40-pin
