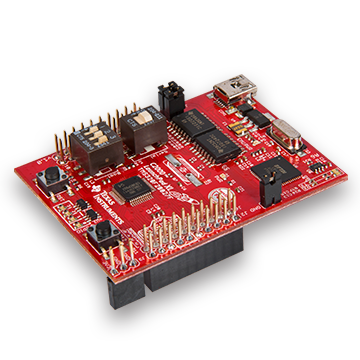

LAUNCHXL-F28027F برد لانچپد
Program and debug your C2000 LaunchPad through a real-time JTAG interface by simply plugging it in to your computer with the included mini USB cable. There is also an additional UART channel provided through the USB and both interfaces are electrically isolated to the Piccolo MCU and all header signals.
LAUNCHXL-F28027F برد لانچپد
On-board emulation
Program and debug your C2000 LaunchPad through a real-time JTAG interface by simply plugging it in to your computer with the included mini USB cable. There is also an additional UART channel provided through the USB and both interfaces are electrically isolated to the Piccolo MCU and all header signals.
BoosterPack-compatibility
Extend your LaunchPad with application focused BoosterPacks. All 40 pins on the LaunchPad allow for easy access to all the peripherals on the F28027x device. These pins enable modularity by supporting 20-pin and 40-pin BoosterPacks such as motor drive inverters, LED lighting, and much more.
What's included?
The C2000 Piccolo LaunchPad includes everything you need to get started with C2000 development!
- LAUNCHXL-F28027F LaunchPad
- Mini USB Cable
- Quick Start Guide
Why this LaunchPad?
- Pre-programmed C2000 Piccolo F28027F MCU
- Built in isolated XDS100 JTAG Emulator enables real-time in-system programming and debugging via USB
- CPU reset button and programmable push button
- Enables development on any Piccolo F2802xF device
- Free download of MotorWare™ software with drivers, modules, and InstaSPIN-FOC projects that work with various BoosterPacks
- Free unrestricted version of Code Composer Studio integrated development environment (IDE) v5
- Free download of controlSUITE™ software with examples, libraries, application software and more
BoosterPack connector
40-pin
Microcontroller Features
- 60 MHz
- 64KB Flash
- 12KB RAM with ECC
- 12bit, 4.6MSPS ADC
- Differentiated InstaSPIN™ software
- High-res PWM
- Event Capture (eCAP) module
- 2 Comparators
- SPI, I2C, UART
- 22 GPIO pins
