DRAGON V3 LINK ADVANCED SLIM
The Dragon Link V3 Slim has all the performance of V3 Large, just in a super small package so that you do not even notice it on your RC transmitter. We did not compromise on the Dragon V3 Advanced Slim, we kept all the great features and gave it even more power at 1500 mW. We made it easier than ever to connect to your RC transmitter and be fully automatic, so there is no hassle and no extra steps before you fly. Constructed using the best performing, high quality componenets, latest and most advanced technology available. This system is built to outperform everything else on market and last for many years. It is not cheap, but it will be the best FPV investment you will make.
Typical Range of more than 60 KM with stock antennas.
Full Bidirectional Telemetry - Telemetry Range varies with receiver type and data rate used.
Built in serial Radio Modem.
Full MAVLINK SUPPORT, works with TOWER, MISSION PLANNER, and Others.
Built in Bluetooth for display of telemetry on any android Smartphone or Tablet.
Fully configurable using PC software.
Lost plane finder - Locate where your plane went down using GPS location.
Easy, noticable multicolor LED for instant status monitoring.
Audible alarms ( For Low Voltage in Copters, Low RSSI, Etc )
Full Logging of flight, position, etc. on Removable SD card. ( In Development )
Super Fast update rates available for Racers and obstacle flyers.
Hassle free, no extra steps operation for those that want basic experience.
Fully compatible with Existing Dragon Link Micro Receivers ( Full Bidirectional )
It is Dragon Link, it will outperform anything in existence.
The Dragon Link complete system is made in the USA, and FULLY GUARANTEED in the USA. The system includes everything you need for long range and high performance RC control, there is nothing additional to purchase. Just order the complete system, and chose the correct options above for your RC Transmitter connection cables and airplane antenna options. NOTE: The Dragon Link system is for RC control only, it does not transmit or affect video transmission in any way.
The Dragon Link Micro Receiver is tiny, and at 10 grams is very light, but it is NOT a " Micro Receiver " in performance !!! The Micro RX is a FULL RANGE, 12 Channel, full performance, full featured receiver. The Micro Receiver outputs PPM, Sbus, Standard PWM servo signals, and is fully compatible with ALL Copters, flight controllers, OSD's, Autopilots, and other FPV devices. The micro receiver is the best oerfirnugm most advanced RC receiver ever made !!! The micro receiver is plug and play, and will work perfectly right out of the box. If you do wish to connect it to your computer, just connect it with any standard Micro USB cable as you would have for your cellphone or camera, and you can access a vast amount of features built in. Features include: Fully configurable channel mapping, Spectrum Analyzer, Emergency Plane Locater Beacon, Built in Memory for Complete System logging, GPS input, and more. The really great thing about this receiver is that each output pin is assignable to any channel that you want. To use all 12 channels of the Micro receiver, Simply feed the PPM output to your flight controller or OSD, and assign the remaining pins of the receiver to higher channels and accessories, This way you can use all 12 channels though this small receiver, All flight controls though the PPM and free up the remaining output pins for servos and accessories. For complete information on this new receiver, download the .PDF manual and configuration software at http://alexfrie.dk/DragonlinkBeta/setup.exe
If you require more than one cable type, you can chose one here and also purchase another under " Connection Cables
Taranis, Turnigy, And Older RC Transmitters with removalble RF module
This cable connects the Dragon Link transmitter to ALL RC transmitters that have a removable RF module. It has standard header pins that you connect to the RF module pins which are exposed once you remove the RF module from the back of your R/C transmitter. This is a very quick and easy way to connect your Dragon Link to your RC/ transmitter, as it provides both PPM and power, and is a one cable connection. It is not required to open the RC transmitter to connect via this cable.
NOTE: This cable will NOT work with the New High End Futabas that have a double row of very Tiny Pins when the RF module is used.
Spectrum, JR, Hitec, and Other 2.4 GHZ Transmitters with no removable RF module
This cable has a small " Mini Audio " type plug that plugs into the DSC or Trainer Port output of modern RC transmitters. This is compatible with ALL Spectrun, and JR RC transmitters reguardless of model. This cable is a little harder to connect as the DSC / Trainer ports of this type do NOT supply power to the Dragon Link. This cable also includes a JST power connector that must be connected to an external 2-4 cell LiPo or 5 to 18 volts, for an installation that can be done without opening the RC transmitter.
Note: You can connect to the internal switched power of the RC transmitter, but this will require opening the transmitter and some basic soldering skills.

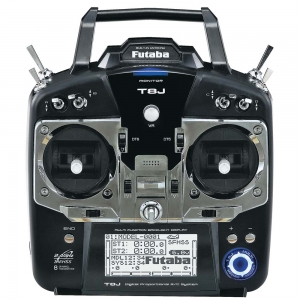

Futaba Square Trainer Port Connector
This is the quickest and easiest way to connect the Dragon Link Transmitter to any Futaba RC transmitter that has the standard Futaba Square type trainer port. Simply Plug in, activate the trainer port in your Futaba transmitter's computer menu, and it will work. We use a genuine high quality Futaba plug, not the cheap chinese ones, for reliable connection and operation.
The Dragon Link is made in the USA and fully guaranteed.
The different antenna extension lengths avialable is the coax extension length ONLY. All the antennas will perform exactly the same, and have the same rnage. The coax extension is to mount the antenna elements itself away from the receiver. For a larger plane, the antenna should be mounted in the tail, so a typical coax extension length would be 36 inches ( 90 CM ) to run from the receiver in the front of the fuselage to the tail where the antenna elements are monted. Antenna elements must be mounted VERTICAL.
For a copter, the direct SMA mount antenna is small and super light. The 15 CM antenna allows mounting of the antenna a short ways away from the receiver, as found on many small copters. The 30 CM is better for larger copters, where the antenna might be further away from the receiver.
OPTIONAL MOUNTING STAND:
The opitonal transmitter mounting bracket is to mount the Dragon Link to the back of RC transmitters that have a thin metal handle ONLY. This will NOT work for transmitters with thicker, plastic rear handles.
INCLUDED WITH COMPLETE SYSTEM

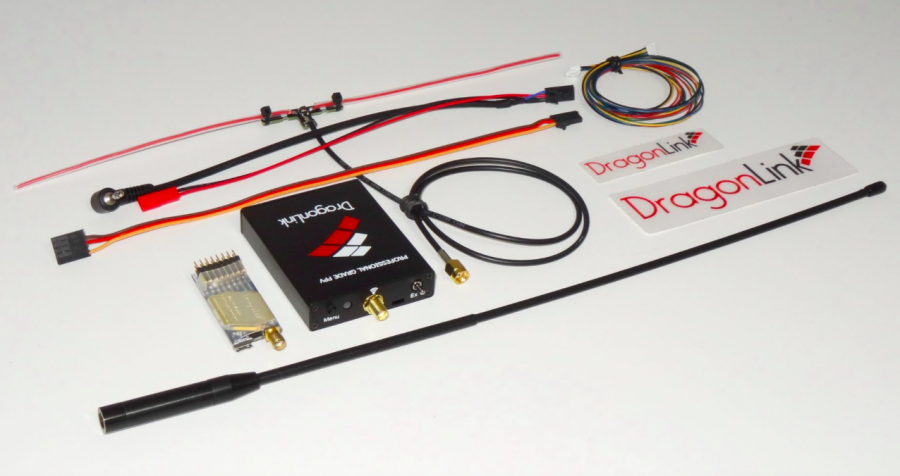

Everything you see in the above pictures ! Note: This system now ships with the Advanced Micro RX!
1 Long Range V3 Advanced Slim Transmitter
1 Long Range Advanced Micro Receiver
1 Genuine Nagoya Transmitter Antenna
1 High Performance FPVPro Receiver Antenna
1 Connection Cable for Transmitter Module
Transmitter Module Voltage: 5 - 18 Volts (2-4 cell LiPo)
Receiver Voltage: 5 - 9 Volts (UBEC or 2 cell LiPo)
Frequency: 433 MHZ - Frequency Hopping in ARS Band.
Typical Range: 40 KM Using Supplied Antennas
Weight: 90 Grams

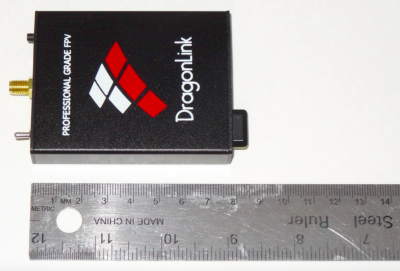

Length: 79 Millimeters
Width: 60 Millimeters
Thickness: 15 Millimeters
