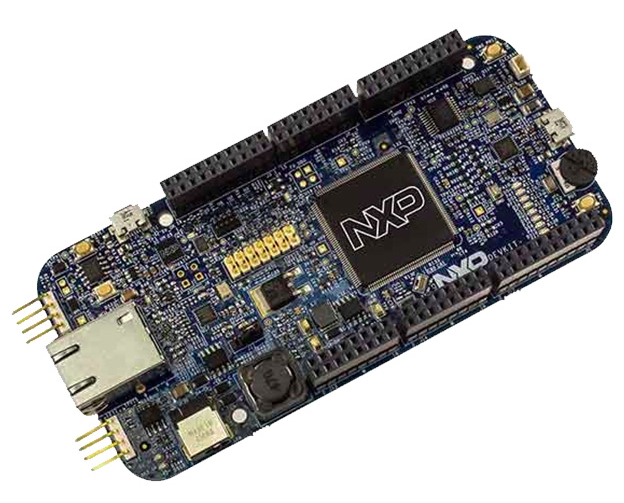

برد MPC5748G Qorivva شرکت NXP با پردازنده ۳۲ بیتی دو هسته ای سری e200
سایر تصاویر محصول

برد MPC5748G Qorivva شرکت NXP با پردازنده ۳۲ بیتی دو هسته ای سری e200

MPC5748G Qorivva MCU 32-Bit e200 Embedded Evaluation Board

برد MPC5748G Qorivva شرکت NXP با پردازنده ۳۲ بیتی دو هسته ای سری e200

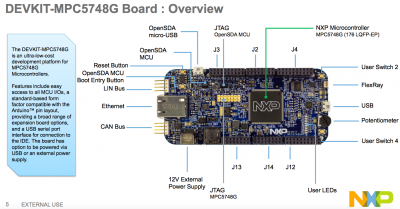

DEVKIT-MPC5748G Board : Features

  • MPC5748G has 2 x 160 MHz Power Architecture® e200Z4 Dual issue cores and 1 x 80 MHz Power Architecture® e200Z2 Single issue core

  • MPC5748G qualified to AEC-Q100 Grade 1 and ambient temperature of - 40 to +125 °C

  • ArduinoTM UNO R3 footprint-compatible with expansion “shield” support

  • Integrated Open-standard Serial and Debug Adapter (OpenSDA) with support for several industry-standard debug interfaces as well as JTAG connector

  • Easy access to the MCU I/O header pins for prototyping

  • On-chip connectivity for Ethernet, FlexRay, USB, CAN, LIN, UART/SCI and

    SPI

  • Potentiometer for precise voltage and analog measurement

  • 8 user LED

  • 2 user push-button switches

  • Flexible power supply options

    • micro-B USB

    • 12V External power supply

  • Similar hardware across ARM®, S12 and Power Architecture® architecture based MCUs

  • DEVKIT-COMM shield boards for extended 4 CAN and 6 LIN ports

4 EXTERNAL USE

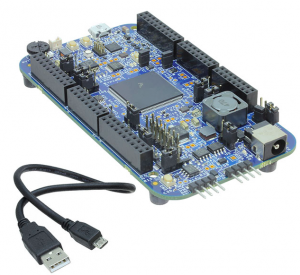

  • Box includes:
    − DEVKIT-MPC5748GBoard − USBCable

  • Downloads includes:
    − QuickStartPackage
    − S32DesignStudioIDE − Applicationnotes



کد محصول MCU-NXP-1
وضعیت موجودی نا موجود
