سیگنال ژنراتور پرتابل
High Precision Handheld Signal Generator
سیگنال ژنراتور پرتابل
INTRODUCTION

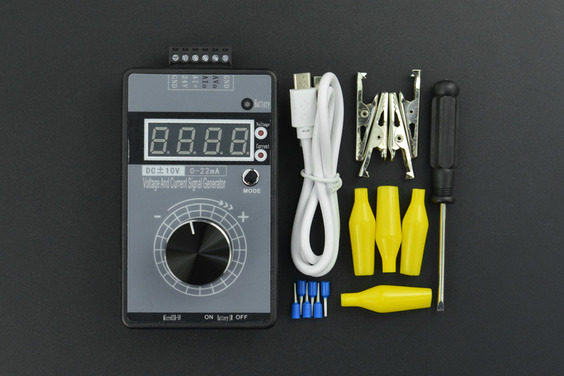

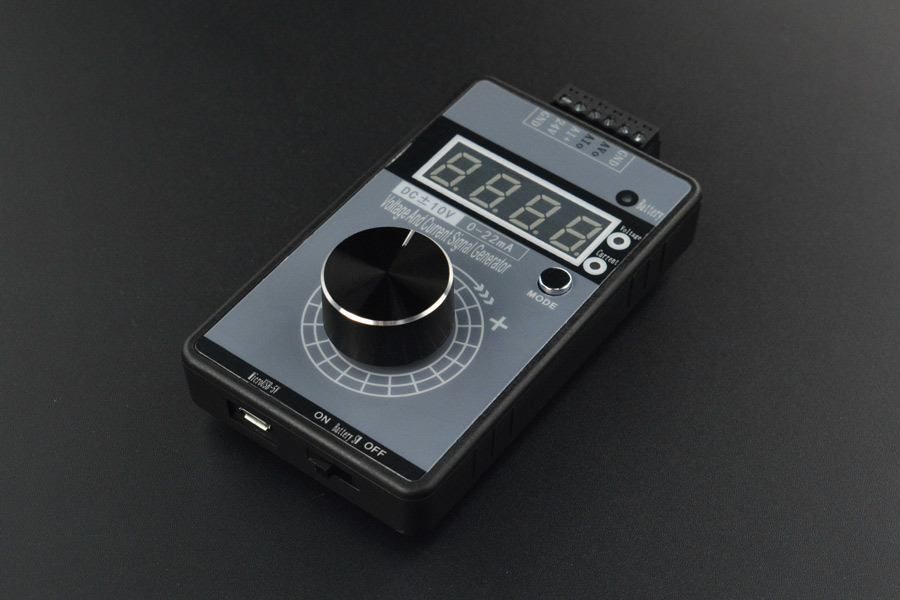

Light brightness cannot be adjusted to be totally extinguished? Motors cannot be controlled to be stationary? Or the adjustable voltage cannot output 0V? Now for helping you better cope with these situations, DFRobot brings you a high-precision handheld signal generator, it has 2 power supply methods (micro USB/external power supply), 3 adjustment modes (coarse adjustment/fine adjustment/custom quick adjustment), 4-digit highlight digital tube for displaying data. Besides, it also offers current output, positive and negative voltage output, 0.05V accuracy, and linear output(accuracy can be calibrated). The module supports both passive and active current outputs, fully compatible with 2, 3, and 4-wire systems. The device comes with output short-circuit protection and power reverse connection protection mechanisms.
It can be used to debug motor forward and reverse rotation, control light brightness, test external modulation signal source hardware or factory product voltage and current, etc.
SPECIFICATION
- Power Supply: Micro USB-5V, external DC15-30V
- Output Voltage: -10~+10V
- Output Current: 0~22mA
- Voltage Accuracy: 0.05V
- Current Accuracy: 0.05mA
- Protection Mechanism: output short circuit protection, power supply reverse connection protection
- Size: 100*60*20mm / 3.94*2.36*0.79inches
