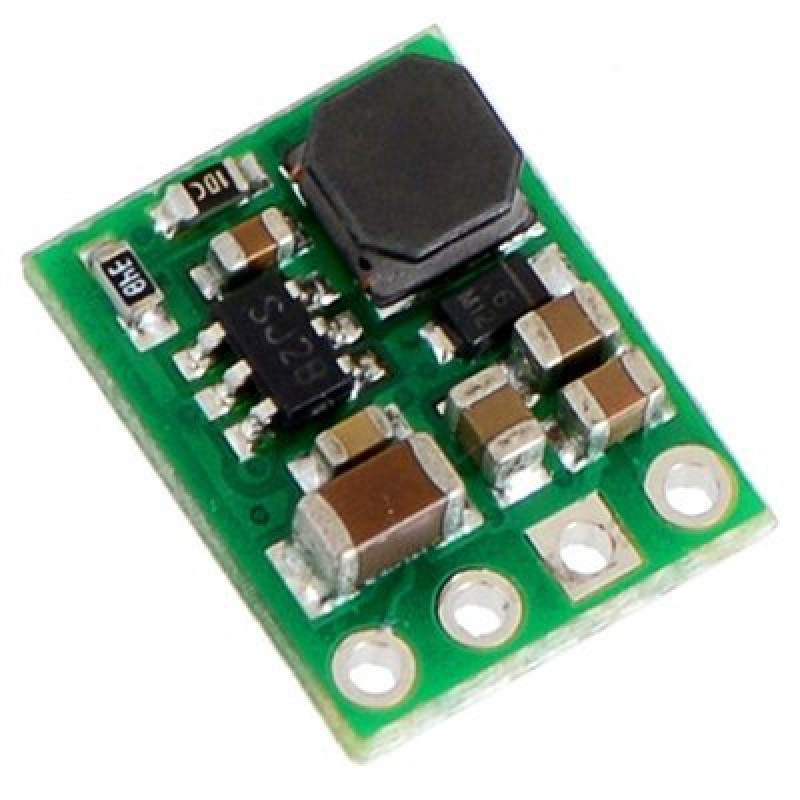

5V, 600mA Step-Down Voltage Regulator D24V6F5
• Operating Voltage: 6.0V to 42V
• Compatible with standard solderless breadboards and perfboards
• 550 kHz switching frequency
• Integrated over-temperature and over-current shutoff
• Compatible with standard solderless breadboards and perfboards
• 550 kHz switching frequency
• Integrated over-temperature and over-current shutoff
5V, 600mA Step-Down Voltage Regulator D24V6F5
Description
• Operating Voltage: 6.0V to 42V
• Compatible with standard solderless breadboards and perfboards
• 550 kHz switching frequency
• Integrated over-temperature and over-current shutoff
• Compatible with standard solderless breadboards and perfboards
• 550 kHz switching frequency
• Integrated over-temperature and over-current shutoff
Specifications
• Operating Voltage: 6.0V to 42V
• Maximum Output Current: 600mA
• Maximum Quiescent Current: 2mA
• Maximum Output Current: 600mA
• Maximum Quiescent Current: 2mA
Dimensions
• Size: 0.4'' × 0.5'' × 0.1''
• Weight: 0.5g
• Weight: 0.5g
