Couple-02 5V 600mA Wireless Charging Module

  • 600mA Wireless charging module
  • Stable power supply
  • Insulation Coil
  • Space-saving design

Couple-02 5V 600mA Wireless Charging Module

Description

  • 600mA Wireless charging module
  • Stable power supply
  • Insulation Coil
  • Space-saving design

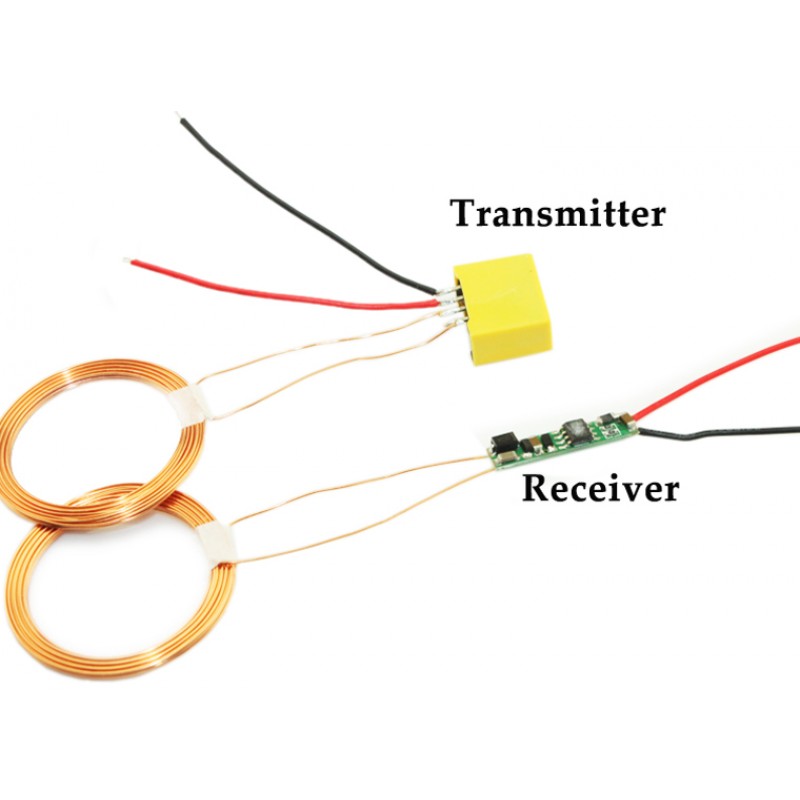

The Couple-02 5V 600mA Wireless Charging Module can be used with electronic equipments for close wireless charging or power supply. Consists of a transmitter and an insulation coil, it can serve as a replacement for the Wireless Power Supply with stable 5V output voltage and maximum 600mA output current.  Its small size and insulation coil are more suitable to use in wireless projects.



What's Included

  • 1x Receiver
  • 1x Transmitter



Specifications



  • Input voltage: 12Vdc
  • Input voltage(limits): 13.5Vdc
  • Output voltage: 5Vdc
  • Output current(maximum): 600mA
  • Transmitter coil inductance: 30uH
  • Transmit-receive distance: 1-20mm

Dimensions

  • Transmitter: 13mm x 10mm x 8mm
  • Receiver: 25mm x 10mm x 1mm
  • Coil diameter: 38mm
  • Coil height: 2mm
