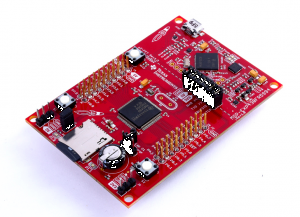

LAUNCHXL-TMS57004
The Hercules LaunchPad features on-board emulation, which means you can program and debug your projects without the need for additional tools.
LAUNCHXL-TMS57004
On-board emulation
The Hercules LaunchPad features on-board emulation, which means you can program and debug your projects without the need for additional tools.
BoosterPack-compatibility

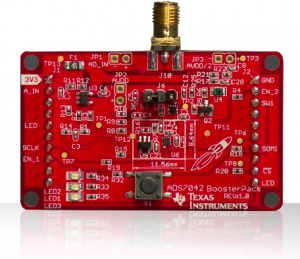

Hercules LaunchPad features a 40-pin expansion header for connectivity to compatible boosterpacks that add additional functionality like wireless, displays & more.
Switches & LEDs
A general purpose IO switch, reset switches & two LEDs are provided on-board for quick development.
What's included?
Hercules LaunchPad evaluation kit includes everything you need to get started with development on Hercules MCUs!
- Hercules LaunchPad TMS570LS04 version
- Micro-USB cable
- Quick Start Guide
Why this LaunchPad?
Features a Hercules TMS570 series MCU designed for safety-critical automotive applications
BoosterPack connector
40-pin
Microcontroller Features
- 32-bit ARM Cortex-R4 CPUs running in lock-step
-
Integrated safety features to simplify SIL-3/ASIL D applications:
- ECC on Flash and RAM interfaces
- Built-In Self-Test for CPU and On-chip RAMs
- Error Signaling Module with Error Pin
- Voltage and Clock Monitoring
- 80MHz
- 384kB Flash with ECC
- 32kB RAM with ECC
- 16kB flash with ECC for EEPROM emulation
- 16ch 12-bit multi-buffered ADC
- 19 pin programmable High-End Timer (N2HET)
- Multi-buffered SPI
- LIN/SCI (UART)
- eQEP - Enhanced Quadrature Encoder Pulse Module
- GIO pins
