نمایشگر لمسی 3.5اینچ TFT رسبری پای
سایر تصاویر محصول

نمایشگر لمسی 3.5اینچ TFT رسبری پای

نمایشگر لمسی 3.5اینچ TFT رسبری پای

INTRODUCTION

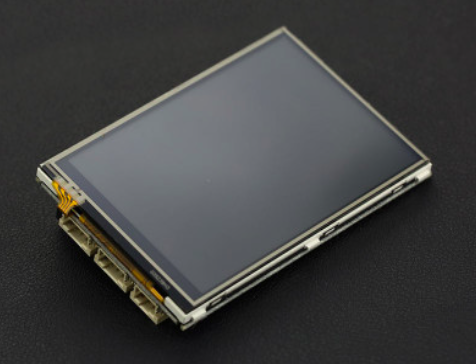

This is a portable 3.5" resistance touchscreen hat with 480 x 320 resolution designed for Raspberry Pi b+, Raspberry Pi 2 and Raspberry Pi 3. The DFRobot Gravity connector makes it easier to connect sensors and modules or even to debug Raspberry Pi via serial port. All the Raspberry Pi GPIO are accessible through pin headers at the side of the screen.

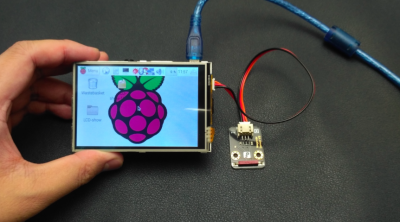

Looking for a small screen that is the same size as your Raspberry Pi? This 3.5" resistance touch screen with 480 x 320 resolution will certainly meet your needs. If further combined with a wireless keyboard, It will act as a fully functional computer that fits right in your pocket. Use it to run the Pi's terminal, to play games, or to browse the web.

This item is more than just a screen, it is also a development friendly platform. It is seamlessly compatible with DFRobot Gravity series modules making it easy to connect or even to debug your Pi via the serial port! All the pins of Pi are left unoccupied, giving you more room to connect jumper wires.

This Touchscreen is well designed for the Raspberry Pi 3, 2 or Model B+ (with 40 GPIO Pins). Please note that it is not directly compatible with the old 26 pin GPIO Raspberry Pi.

Note: Supports Raspian and Ubuntu systems, compatible with Raspberry Pi B+, Raspberry Pi 2 and the latest Raspberry Pi 3. (any version with 40 GPIO pins)

SPECIFICATION







  • Operating Voltage: 5V
  • Interface Type: SPI
  • GPIO Header Pins: 16
  • UART Header Pins: 1
  • UART Header Pins: 1
  • Gravity I2C Pins: 1
  • Gravity UART Pins: 1
  • Gravity GPIO Pins: 1
  • Dimensions: 86 x 56 x 20 mm / 3.38 x 2.24 x 0.79 inches
  • Weigh: 70g

DOCUMENTS

نظرات کاربران درباره نمایشگر لمسی 3.5اینچ TFT رسبری پای

نظری در مورد این محصول توسط کاربران ارسال نگردیده است.
اولین نفری باشید که در مورد نمایشگر لمسی 3.5اینچ TFT رسبری پای نظر می دهد.

ارسال نظر درباره نمایشگر لمسی 3.5اینچ TFT رسبری پای

لطفا توجه داشته باشید که ایمیل شما منتشر نخواهد شد.

کد امنیتی *
captcha
قیمت: 1,490,000 ریال
کد محصول LCD-53
وضعیت موجودی موجود
