اسکنر لیزری و فاصله یاب

مرتب سازی بر اساس:   نام محصول (صعودی | نزولی)، قیمت (صعودی | نزولی)، امتیاز مشتریان (صعودی | نزولی)

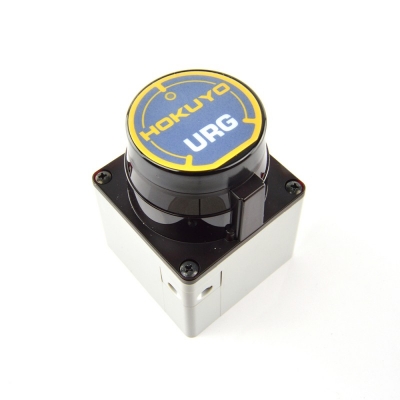

Hokuyo URG-04LX Scanning Laser Rangefinder

Description

• Hokuyo's URG-04LX detectable range is 20mm to 4000mm
• 100msec/scan
• 5V operating voltage
• 240° area scanning range with 0.36° angular resolution
• USB and Serial (RS-232) interfaces for maximum flexibility

Hokuyo URG-04LX-UG01 Scanning Laser Rangefinder

Description

Hokuyo's URG-04LX-UG01 detectable range is 20mm to 5600mm
• 100msec/scan
• 5V operating voltage
• 240° area scanning range with 0.36° angular resolution

Hokuyo UST-05LA Scanning Laser Rangefinder

Description

  • Small, accurate, high-speed scanning laser range finder
  • Obstacle detection and localization of autonomous robots
  • Light source: Laser semiconductor (905nm)
  • Scan speed: 25ms (Motor speed 2400rpm)
  • Accuracy: 60mm to 5000mm (±40mm)

Hokuyo UST-10LX Scanning Laser Rangefinder

Description

  • Small, accurate, high-speed scanning laser range finder
  • Obstacle detection and localization of autonomous robots
  • Detection distance (maximum): 30m
  • Light source: Laser semiconductor (905nm)
  • Scan speed: 25ms (Motor speed 2400rpm)

Hokuyo UTM-30LX Scanning Laser Rangefinder

Description

Hokuyo's UTM-30LX detectable range is 100mm to 30,000mm (30m!)
• 25msec/scan
• 12V operating voltage
• 270° area scanning range with 0.25° angular resolution
• USB2.0 interface
• The LX is suitable for real-time distance data collection

Hokuyo UTM-30LX-EW Scanning Laser Rangefinder

Description

• Supply voltage: 12VDC ±10%
• Detectable in Snowy, Rainy, Foggy and Dusty conditions
• Ethernet Interface
• Can be used Outdoors
• IP Rating: 67

LIDAR-Lite 2 Laser Rangefinder (PulsedLight)

Description

  • Faster, more accurate and more powerful than Legacy Lidar-Lite
  • Compact 48mm x 40mm x 20mm module with 40m measuring range
  • Signal Processing Improvements offer 5X Faster Measurement Speeds
  • Improved I2C Communications ans assignable I2C Addressing
  • Great for drones, robotics and other demanding applications

سنسور فاصله یاب لیزری VL53L0X

Optical Sensor 200cm I²C Output

SENSOR LASER DISTANCE TOF 2M

VL53L0CXV0DH/1

اندازه گیری فاصله تا 2 متر

سنسور فاصله یاب لیزری VL6180X

Optical Sensor Ambient I²C 12-SMD Module

MOD TIME-OF-FLIGHT 3IN1 12LGA

VL6180XV0NR/1

اندازه گیری فاصله تا 10 و 20 و 60 سانتیمتر با دقت های مختلف

Parallax 15-122cm Laser Rangefinder

Description

• Compact module with integrated CMOS camera and laser system
• Optimal measurement range of 6-48 inches
• Maximum object detection distance of-8 feet (2.4 meters)
• Range finding sample rate of 1Hz
• RoHS compliant

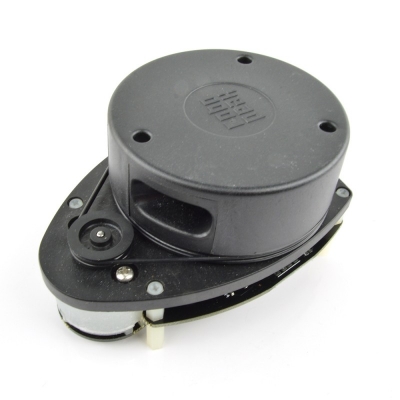

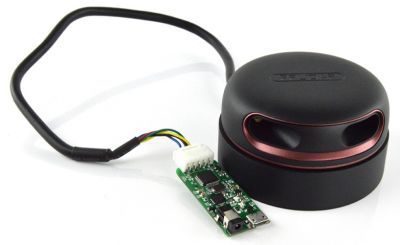

لیزر اسکنر RPLIDAR 360°

Description

  • 360° laser scanner development kit with omnidirectional laser scan
  • High speed laser triangulation vision system
  • Ideal sensor for robot localization & mapping
  • User configurable scan rate (rotation speed) via PWM signal

دست دوم، با کابل و کارتن

صحت عملکرد توسط کارشناسان فنی شرکت تضمین می شود.



قیمت: 49,000,000 ریال

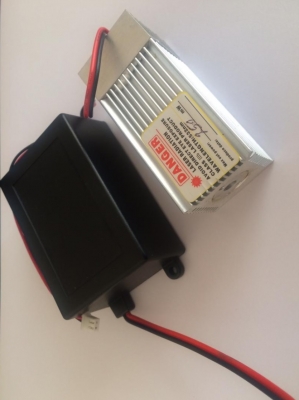

لیزر سبز ۲۵۰ میلی وات

تغذیه : از طریق اتصال به برق AC شهر

ماژول فاصله یاب لیزری VL53L0X

VL53L0X - Light, 3D Time-of-Flight (ToF) Sensor Evaluation Board

VL53L0X TIME OF FLIGHT DISTANCE

اندازه گیری فاصله تا 2 متر

قیمت: 5,250,000 ریال

ماژول فاصله یاب لیزری VL6180X

VL6180X FlightSense™ Light, 3D Time-of-Flight (ToF) Sensor Evaluation Board

SPARKFUN TOF RANGE FINDER BREAKO

SEN-12784

اندازه گیری فاصله تا 10 و 20 و 60 سانتیمتر با دقت های مختلف



Hokuyo UBG-04LX-F01 (Rapid URG) Scanning Laser Rangefinder

Description

Hokuyo's UBG-04LX-F01 detectable range is 20mm to 5600mm
• 28msec/scan
• 12V operating voltage
• 240° area scanning range with 0.36° angular resolution
• USB and Serial (RS-232) interfaces for maximum flexibility

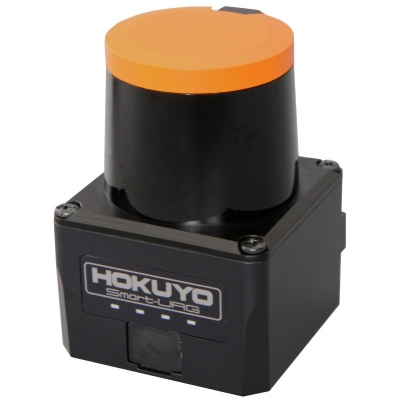

Hokuyo UST-05LN Scanning Laser Obstacle Detection

Description

  • Small, lightweight and accurate obstacle detection sensor
  • Triggers outputs when objects comes within the scanning path
  • Perfect for indoor applications
  • Scan ranges up to 5m in a 270° arc

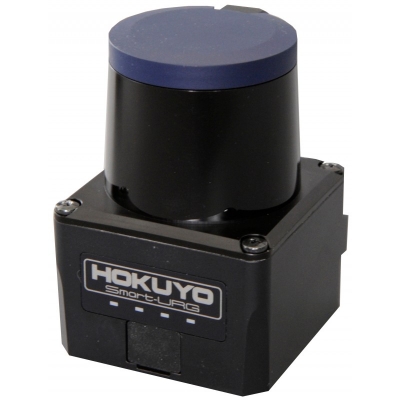

Hokuyo UST-20LX Scanning Laser Rangefinder

Description

  • Small, accurate, high-speed scanning laser range finder
  • Obstacle detection and localization of autonomous robots
  • Light source: Laser semiconductor (905nm)
  • Scan speed: 25ms (Motor speed 2400rpm)
  • Detection distance: 60m (maximum)

Hokuyo UTM-30LN Scanning Laser Rangefinder (30m)

Description

• Power source: 12VDC±10%
• Detection Range: 0.1 to 30m
• Accuracy: 0.1 to 10m ± 30mm, 10 to 30m ±50mm
• Angular Resolution: 0.25°(360°/1,440 steps)
• Possible for outdoor Applications
• Reflective type with easy wiring
• The LN is an obstacle detection scanner that offers a single output when an object comes into the scanning zone.

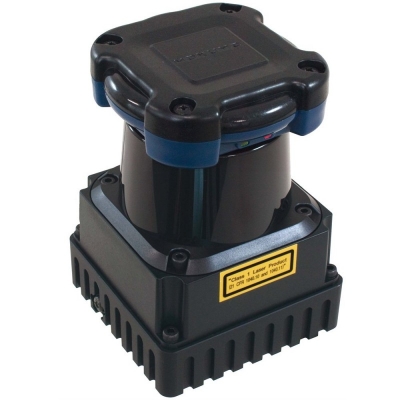

Hokuyo UXM-30LN-PW Scanning Laser Rangefinder

Description

• FDA approved SOKUIKI sensor for intelligent robots
• High-sensitivity and Multi-Echo function
• Scanning range: 0.1 to 30m (black objects with 10% reflectance)
• Scan angle: 190º
• Scanning time: 50msec/scan

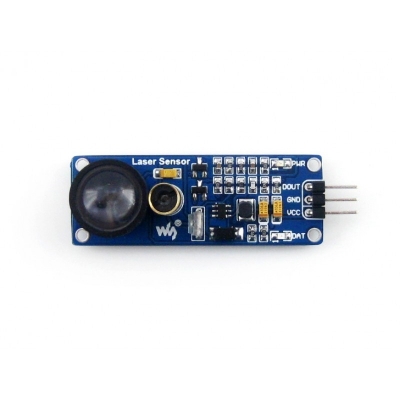

Obstacle Detection Laser Sensor

Description

  • Features boost circuit
  • Signal output indicator

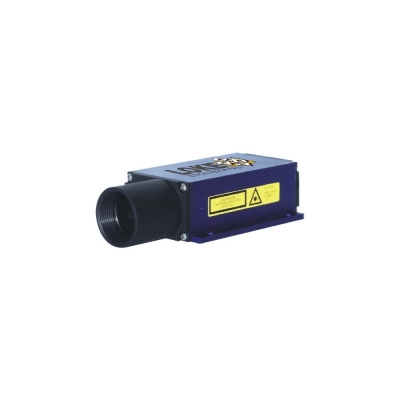

Loke 0.2 to 30m Industrial Laser Distance Meter (10Hz)

Description

• RS232/422 interface
• Opto-electronic distance measuring module for industrial applications
• Millimeter accuracy measurement on any surface
• Easy installation and commissioning
• Meets IP 65 protection class for industrial use
