سنسور دما غیر تماسی IR
سایر تصاویر محصول

سنسور دما غیر تماسی IR

سنسور دما غیر تماسی IR

We can divide temperature measurement in to two types: contact and non-contact. Contact measurement can only accurately measure temperature when the testing object and the sensor reach thermal equilibrium. This can mean longer response times and reading inaccuracies offset by ambient temperature. By contrast, non-contact measurement uses infra-red radiation to measure the temperature and does not require a direct touch. Additionally, this method of measurement can be read quickly and accurately.

In recent years non-contact measurement methods have been used for medical, environmental monitoring, home automation, automotive electronic, aerospace and military applications.

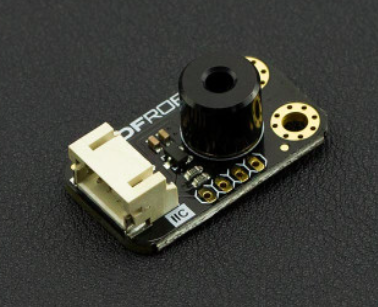

Our latest infrared temperature measurement module is the MLX90614. This module measures the surface temperature by detecting infrared radiation energy and wavelength distribution. The IR temperature probe consists of an optical system, photoelectric detector, amplifier, signal processing and output module. The optical system collects the infrared radiation in its field of view and the infrared radiation energy is converted in to corresponding electrical signals when converging on the photoelectric detector. After being processed by the amplifier and signal processing circuit, the signal is converted in to a temperature value. The MLX90614 is self calibrating and has a low noise amplifier integrated in to the signal processing chip. The chip itself is a 17 bit ADC and DSP device, giving accurate and reliable results.


SPECIFICATION

  • Operating Voltage: 3.3V - 5V
  • Operating Current: 1.2mA
  • Temperature: -70.01℃ to +382.19℃, (0.01 ℃ resolution)
  • Interface Type: I2C

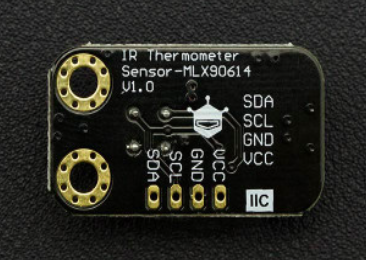

  • Interface Line Sequence: VCC, GND, SCL, SDA
  • Dimensions: 31.5*18 mm/1.24 x 0.7 inches
  • Weight: 15g

DOCUMENTS

نظرات کاربران درباره سنسور دما غیر تماسی IR

نظری در مورد این محصول توسط کاربران ارسال نگردیده است.
اولین نفری باشید که در مورد سنسور دما غیر تماسی IR نظر می دهد.

ارسال نظر درباره سنسور دما غیر تماسی IR

لطفا توجه داشته باشید که ایمیل شما منتشر نخواهد شد.

کد امنیتی *
captcha

برچسب های مرتبط با سنسور دما غیر تماسی IR

سنسور دما غیر تماسی IR ماژول رطوبت و دما سنسور دما
قیمت: 875,000 ریال
کد محصول SEN-TEM-35
وضعیت موجودی نا موجود
