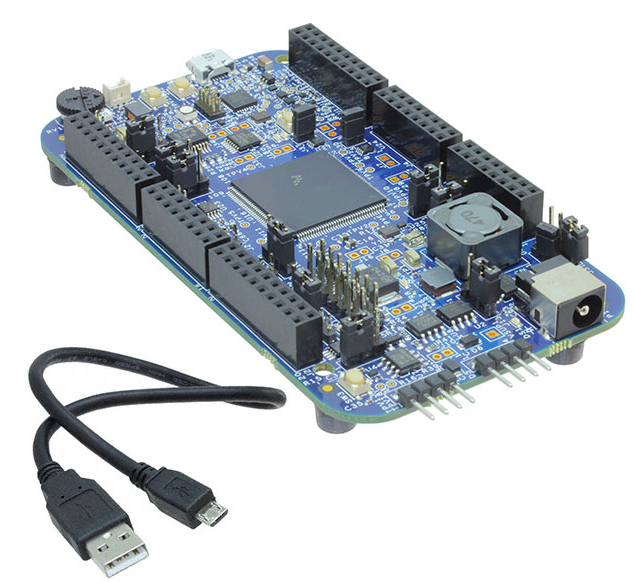

برد MPC5744P شرکت NXP با پردازنده ۳۲ بیتی دو هسته ای سری e200Z4

DEVKIT-MPC5744P Board : Features

• MPC5744P has 2 x 200 MHz Power Architecture® e200Z4 Dual issue cores operating in delayed lockstep

• MPC5744P qualified to AEC-Q100 Grade 1 and ambient temperature of -40 to +125 °C

• ArduinoTM UNO R3 footprint-compatible with expansion “shield” support − Supports DEVKIT-MOTORGD motor control shield

• Integrated Open-standard Serial and Debug Adapter (OpenSDA) with support for several industry-standard debug interfaces as well as JTAG connector

• Easy access to the MCU I/O header pins for prototyping

• On-chip connectivity for FlexRay, CAN, LIN, UART/SCI and SPI

• Potentiometer for precise voltage and analog measurement

• One user RGB LED (1 red, 1 green, 1 blue in single package)

• 2 user push-button switches

• Flexible power supply options

• micro-B USB

• 12V External power supply

• Similar hardware across ARM®, S12 and Power Architecture® architecture based MCUs

• Box includes:
− DEVKIT-MPC5744P Board

• Downloads includes:

• −  Quick Start Package

• −  S32 Design Studio IDE

• −  Application notes

  • NOTE: DEVKIT-MPC5744P RevB does not support shield reset. Any ArduinoTM shield that relies on reset signal from DEVKIT-MPC5744P RevB will not work. Shield reset is supported starting with RevC.
