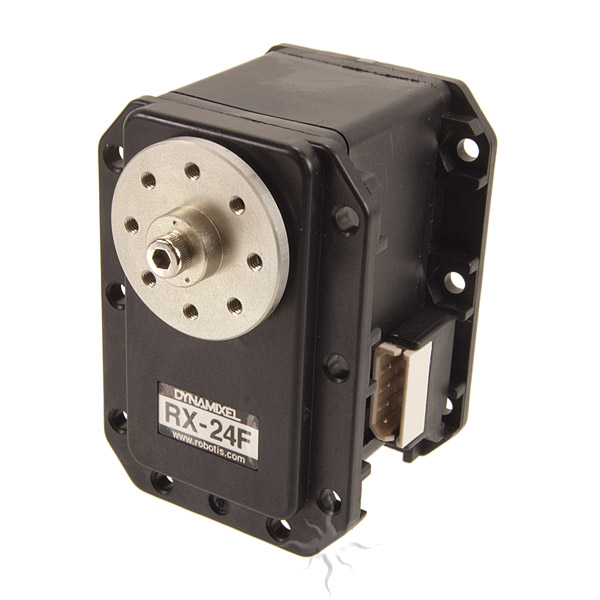

سروو موتور داینامیکسل RX-24F

سروو موتور داینامیکسل RX-24F

The RX-24F Dynamixel Robot Servo Actuator- fully compatible with the RX-28 formfactor and protocol. Twice the speed, but with lower torque and voltage requirements! More than just a digital servo, it's a highly sophisticated robotic component. Each servo has the ability to track its speed, temperature, shaft position, voltage, and load. As if this weren't enough, the control algorithm used to maintain shaft position can be adjusted individually for each servo, allowing you to control the speed and strength of the motor's response. All of the sensor management and position control is handled by the servo's built-in microcontroller. This distributed approach leaves your main controller free to perform other functions.



RX-24F Stats
Operating Voltage 12V
Stall Torque* 26 kg·cm
360 oz·in
No-load Speed 0.079 sec/60°
Weight 67g
Size 50.6 x 35.6 x 35.5 mm
Resolution 0.29°
Reduction Ratio 1/193
Operating Angle 300° or Continuous Turn
Max Current 2400mA
Standby Current 50 mA
Operating Temp -5°C ~ 85°C
Protocol RS485 Asynchronous Serial
Module Limit 254 valid addresses
Com Speed 7343bps ~ 1Mbps
Position Feedback Yes
Temp Feedback Yes
Load Voltage Feedback Yes
Input Voltage Feedback Yes
Compliance/PID Yes
Material Metal Gears &
Engineering Plastic Body
Motor Maxon RE-MAX
Manual Download RX-24F Manual
Controller List USB2Dynamixel
CM2+

*Stall torque is the maximum instantaneous and static torque. ROBOTIS recommends that your robot or project uses 1/5 or less of the stall torque to create stable motions.



RX-24F/28 Servo Documentation:
