پروگرامر و دیباگر STLINK-V3MODS

Description

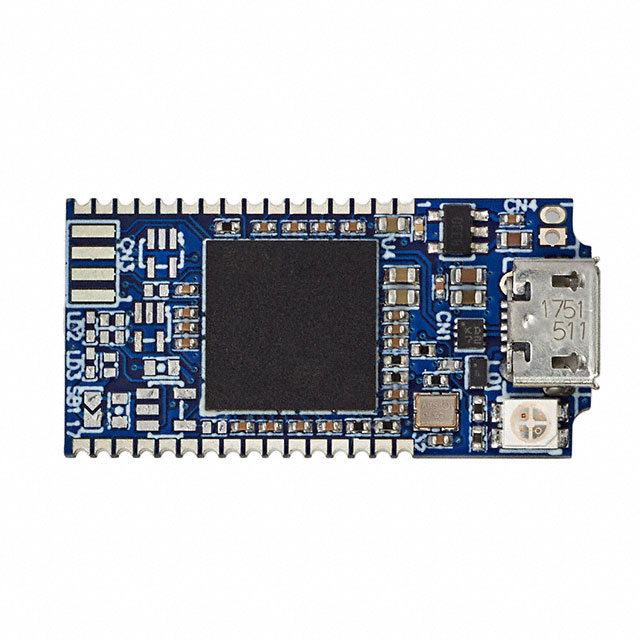

STLINK-V3MODS is a small‑size debugging and programming probe for STM32 microcontrollers.

The JTAG/SWD interfaces are used to communicate with any STM32 microcontroller located on an application board.

STLINK-V3MODS also provides a Virtual COM port interface enabling the host PC to communicate with the target microcontroller through one UART, and bridge interfaces (SPI, I²C, CAN, and GPIOs) simplifying, for instance, the field programming through the bootloader.

STLINK-V3MODS is ready to be embedded in a controller application and can be directly soldered on the PCB motherboard.

All features

Modular probe with small size: approximately 15 × 30 mm
Direct‑to‑PCB implementation by 2 × 16‑pin 1.27 mm edge castellated vias, with all signals available in the required minimum PCB surface
Self-powered through a USB Micro-B connector
USB 2.0 high‑speed compatible interface
5 V source output capability up to 200 mA
JTAG/SWD (Serial Wire Debug) specific features:
- 3.0 to 3.6 V application voltage support and 5 V tolerant inputs
- JTAG communication support
- SWD and SWV (Serial Wire Viewer)
Virtual COM port (VCP) specific features:
- 3.0 to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs
- VCP frequency up to 15 MHz
Multipath bridge USB to SPI/UART/I²C/CAN/GPIOs specific features:
- 3.0 to 3.6 V application voltage support and 5 V tolerant inputs
Drag-and-drop flash programming
Two color LEDs: communication and power
