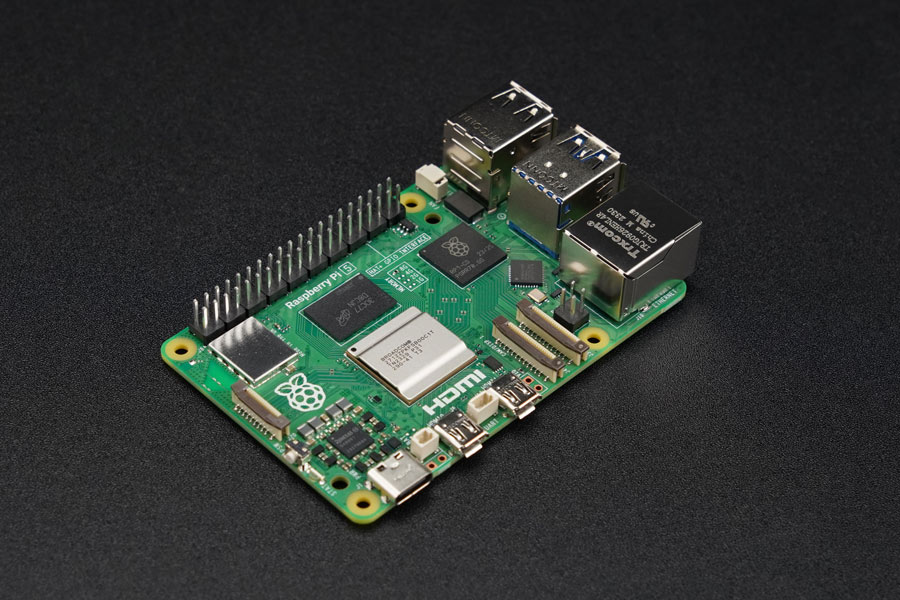

Raspberry Pi 5 Single Board Computer - 4GB



رزبری پای 5 رم 4 گیگابایت - Raspberry Pi 5 4GB

Introduction

Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a 2–3× increase in CPU performance relative to Raspberry Pi 4. Alongside a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU; dual 4Kp60 display output over HDMI; and state-of-the-art camera support from a rearchitected Raspberry Pi Image Signal Processor, it provides a smooth desktop experience for consumers, and opens the door to new applications for industrial customers.

For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at Raspberry Pi. The RP1 “southbridge” provides the bulk of the I/O capabilities for Raspberry Pi 5, and delivers a step change in peripheral performance and functionality. Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals; the dedicated two-lane 1Gbps MIPI camera and display interfaces present on earlier models have been replaced by a pair of four-lane 1.5Gbps MIPI transceivers, tripling total bandwidth, and supporting any combination of up to two cameras or displays; peak SD card performance is doubled, through support for the SDR104 high-speed mode; and for the first time the platform exposes a single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals.

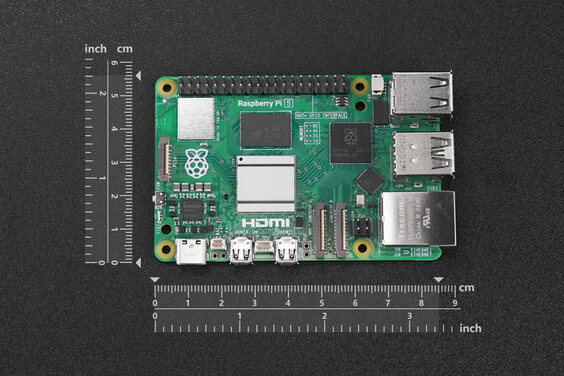

Dimension Diagram of Raspberry Pi 5 Single Board Computer

Dimension Diagram of Raspberry Pi 5 Single Board Computer





Interface Diagram of Raspberry Pi 5 single-board computer

Interface Diagram of Raspberry Pi 5 single-board computer



Comparison between 5B and 4B

Features

Raspberry Pi 5 Model B

Raspberry Pi 4 Model B
Release Date 28th September 2023 24th Jun 2019
SoC Type (Processor) Broadcom BCM2712 Broadcom BCM2711
Core Type Cortex-A76 64-bit (ARMv8) Cortex-A72 64-bit(ARMv8)
No. of Cores Quad-Core
CPU Clock 2.4GHz 1.5GHz
GPU VideoCore VIl VideoCore VI
Multimedia OpenGL ES 3.1,Vulkan 1.3 OpenGLES1.1,20,30Graphics
OS Storage microSD,NVMe SSD(M.2 HAT) microSD
RAM
LPDDR4X-4627:
8GB,4GB,2GB* and 1GB*
LPDDR4-3200:
8GB,4GB,2GB and 1GB
Audio/Video Output Video Output via PCB pads 3.5mm Jack: Audio/Video Composite
Ethernet Gigabit Ethernet
USB Port
2 x USB 3.0,5Gbps simultaneously
2 x USB 2.0
2x USB 3.0
2x USB 2.0
HDMI 2 x micro HDMl support Dual Display,4Kp60
W6 802.11 b/g/n/ac(2.4GHz and 5GHz)
Bluetooth Bluetooth 5.0/BLE
Antenna PCB Antenna
GPIO 40 Pins(Fully backward-compatible)
Dedicated Port
UART
RTC External Battery
Cooler Fan
No
Camera Port
2 x 4 lane MIPI camera or
display transceivers
1x2 lane MIPI Camera
Display Port 1x 2 lane MIPI Display
On / Off Button Yes No
Operating System
Raspberry Pi OS Bookworm
(> 28 September 2023)
Raspberry Pi OS Bullseye
(>24 Jun 2019)
Dimension 85mm x 56mm
Power Input
5V via USB Type C(up to 5A,PD)
5V via GPIO Header (up to 5A)
Power over Ethernet,
requires PoE+ HAT
5V via USB Type C(up to 3A)
5V via GPIO Header(up to 3A)
Power over Ethernet,
requires PoE+HAT

Features

  • Raspberry Pi Fifth Flagship Development Computer: Feature a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, using silicon built in-house at Raspberry Pi, offering a step change in peripheral performance and functionality
  • Significant Graphics Capability: Equip an 800MHz VideoCore VII GPU and deliver better graphics performance, suitable for multimedia applications, gaming, and graphics-intensive tasks
  • State-of-the-Art Camera Support: Built with the dedicated dual 4-lane 1Gbps MIPI DSI/CSI connectors, tripling total bandwidth, and supporting any combination of up to two cameras or displays
  • Versatile Connectivities: Offer Gigabit Ethernet and a PCIe interface, along with dual-band Wi-Fi and Bluetooth 5.0/BLE wireless capability
  • Enhanced Peripherals: Provide 1x UART connector, 1x microSD card slot supporting high-speed, 2x USB.0 3.0 supporting sync 5Gbps operation, 2x USB2.0 ports ports, 1x RTC, 2x 4Kp60 display output with HDR support

Applications

  • PC alternatives
  • Multimedia Center
  • Console
  • Education and Learning Tools
  • Smart Home Systems
  • Sensor Network
  • Remote Monitoring
  • Industrial Automation
  • Embedded Systems Development

Specification

  • CPU: 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches, and a 2MB shared L3 cache
  • GPU: VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
  • Display Output: Dual 4Kp60 HDMI® display output with HDR support
  • Video Decoder: 4Kp60 HEVC decoder
  • RAM: 4GB LPDDR4X-4267 SDRAM
  • Wi-Fi: Dual-band 802.11ac Wi-Fi®
  • Bluetooth: Bluetooth 5.0/ Bluetooth Low Energy (BLE)
  • Storage: microSD card slot, with support for high-speed SDR104 mode
  • Power Button: On/Off included
  • USB Ports:
          2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
          2 × USB 2.0 ports
  • Ethernet: Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
  • Camera/Display: 2 × 4-lane MIPI camera/display transceivers
  • PCIe Interface: PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
  • Power: 5V/5A DC power via USB-C, with Power Delivery support
  • Raspberry Pi Header: Raspberry Pi standard 40-pin header
  • Real-time Clock (RTC): Powered from external battery

Shipping List

  • Raspberry Pi 5 Single Board Computer - 4GB x1
