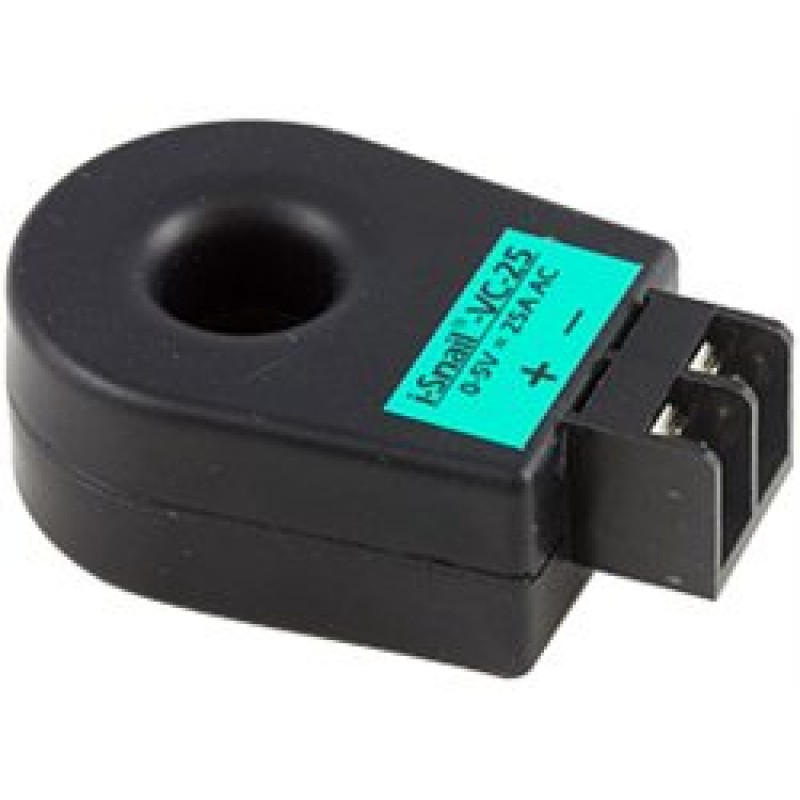

25A AC Current Sensor

Description

• Economical method to monitor any AC electrical load
• Built-in current transducer
• Wire Window accommodates up to AWG #2
• Calibrated for 0-25A AC
• RoHS compliant and Non Ratiometric

25A AC Current Sensor

Description

• Economical method to monitor any AC electrical load
• Built-in current transducer
• Wire Window accommodates up to AWG #2
• Calibrated for 0-25A AC
• RoHS compliant and Non Ratiometric

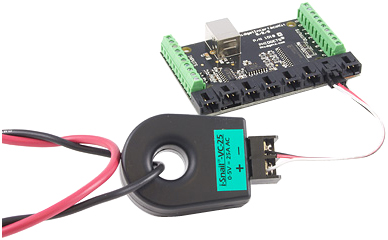

The 25A AC Current Sensor is a self powered AC current transducer that provides a 0-5V dc analog signal proportional to the AC current flowing through the device wire window. It is ideal for load monitoring without the need for an external power supply. Factory calibrated, fixed ranges ensure superior accuracy and eliminate configuration and adjustments in the field, saving time and avoiding confusion. The 14.5mm (0.570") wire window accommodates a conductor up to AWG #2. Multiple turns of the primary wire may be used to alter the input range. Output voltage is clamped at 6.5V, and the unit delivers a linear output up to 120% overload (6V). Mounting hardware for flexible surface mounting included.

Useful Links

PDF Files
Datasheet
Wiring Diagram
