SeeedStudio Non-Invasive AC Current Sensor (100A Max)

Description

• Non-invasive AC current sensor (100A max)
• Output mode: 0-50mA
• Opening size: 13mm x 13mm
• Leading wire: 1m

SeeedStudio Non-Invasive AC Current Sensor (100A Max)

Description

• Non-invasive AC current sensor (100A max)
• Output mode: 0-50mA
• Opening size: 13mm x 13mm
• Leading wire: 1m

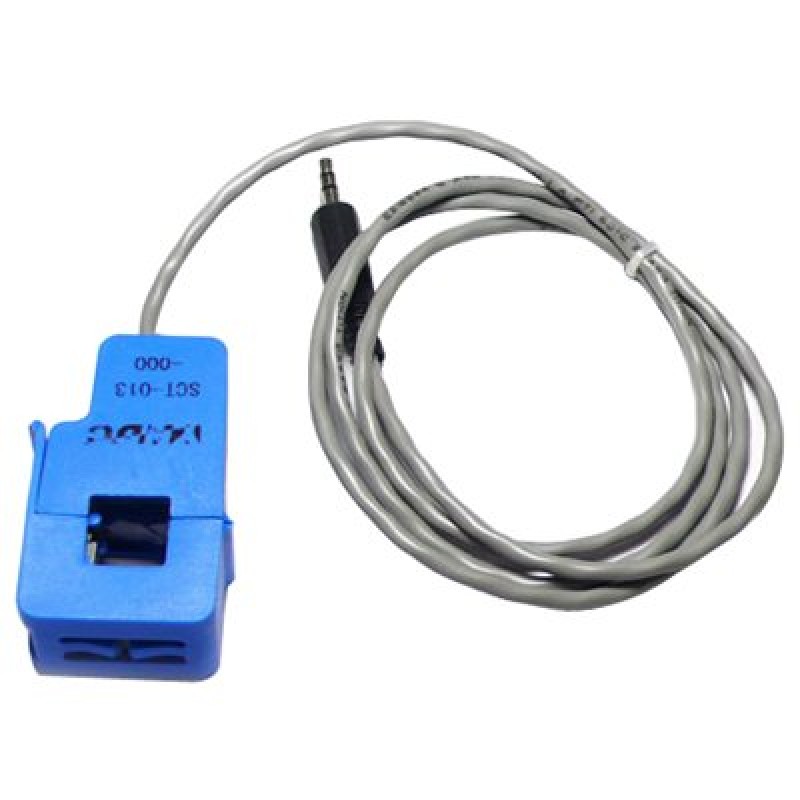

This is the SeeedStudio Non-Invasive AC Current Sensor (100A Max). It is a non-invasive current transformer. Use this sensor clip to build your own personal energy monitor. It is suitable for the current measuring monitoring and protection of AC motor lighting equipment, air compressor and so on. It is made with Ferrite core material and it's opening size 13mm x 13mm meets your requirements.

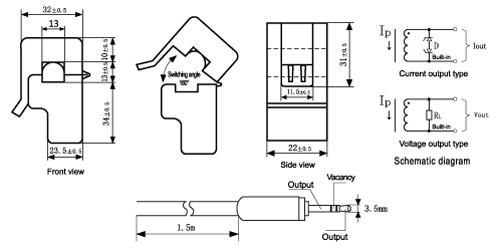

Specifications

• Input current: 0~100A AC
• Non-linearity: ±3%
• Turn ratio: 100A:0.05A
• Resistance grade: Grade B
• Work temperature: -25°C to +70°C
• Dielectric strength(between shell and output): 1000V AC/1min 5mA
• Leading wire in length: 1m



نظرات کاربران درباره SeeedStudio Non-Invasive AC Current Sensor (100A Max)

نظری در مورد این محصول توسط کاربران ارسال نگردیده است.
اولین نفری باشید که در مورد SeeedStudio Non-Invasive AC Current Sensor (100A Max) نظر می دهد.

ارسال نظر درباره SeeedStudio Non-Invasive AC Current Sensor (100A Max)

لطفا توجه داشته باشید که ایمیل شما منتشر نخواهد شد.

کد امنیتی *
captcha

برچسب های مرتبط با SeeedStudio Non-Invasive AC Current Sensor (100A Max)

SeeedStudio Non seeed Sensor Invasive AC Current Sensor
قیمت: 360,000 ریال
کد محصول SEN-CV-28
وضعیت موجودی نا موجود
