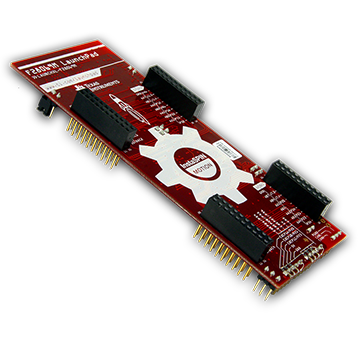

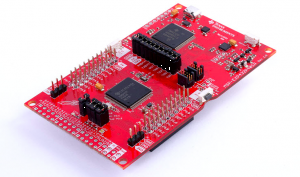

LAUNCHXL-F28069M برد لانچپد

The F28069M LaunchPad features on-board isolated XDS100v2 JTAG emulation, which means you can program and debug your projects without the need for additional tools.

LAUNCHXL-F28069M برد لانچپد

On-board emulation

The F28069M LaunchPad features on-board isolated XDS100v2 JTAG emulation, which means you can program and debug your projects without the need for additional tools.

BoosterPack-compatibility

F28069M LaunchPad features dual 40-pin expansion headers for connectivity to compatible boosterpacks that add additional functionality like three phase inverters, wireless, displays & more.

What's included?

  • F28069M LaunchPad
  • Mini USB
  • Quick Start Guide

Why this LaunchPad?

  • Rapid development of Motion control systems
  • Pre-programmed C2000 Piccolo F28069M MCU
  • Includes on-chip ROM library to enable InstaSPIN-MOTION™ and InstaSPIN-FOC™ solutions
  • Built in isolated XDS100 JTAG Emulator enables real-time in-system programming and debugging via USB
  • CPU reset button
  • Enables development on any Piccolo F2806x device
  • Free download of MotorWare™ software with drivers, modules, and InstaSPIN projects that work with various BoosterPacks
  • Free unrestricted version of Code Composer Studio integrated development environment (IDE) v6
  • Free download of controlSUITE™ software with examples, libraries, application software and more

BoosterPack connector

Dual 40-pin

Microcontroller Features

  • 90 MHz
  • 256KB Flash
  • 96KB RAM
  • 16 PWM Channels, 8 High Resolution (HRPWM)
  • SPI, I²C, UART, CAN

نظرات کاربران درباره LAUNCHXL-F28069M برد لانچپد

نظری در مورد این محصول توسط کاربران ارسال نگردیده است.
اولین نفری باشید که در مورد LAUNCHXL-F28069M برد لانچپد نظر می دهد.

ارسال نظر درباره LAUNCHXL-F28069M برد لانچپد

لطفا توجه داشته باشید که ایمیل شما منتشر نخواهد شد.

کد امنیتی *
captcha

برچسب های مرتبط با LAUNCHXL-F28069M برد لانچپد

LAUNCHXL F28069M برد لانچپد Launchpad
قیمت: 4,350,000 ریال
کد محصول MCU-TI-10
وضعیت موجودی موجود
برند TI
