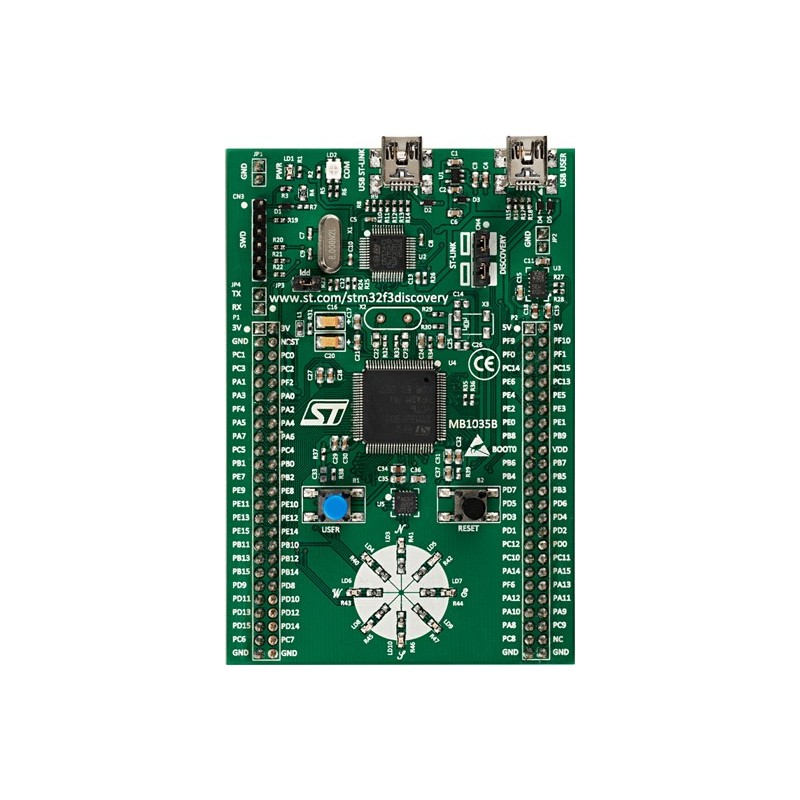

برد STM32F3DISCOVERY


The STM32F3DISCOVERY helps you to discover the STM32 F3 series Cortex-M4 mixed-signals features and to develop your applications easily. It includes everything required for beginners and experienced users to get started quickly.

برد STM32F3DISCOVERY


The STM32F3DISCOVERY helps you to discover the STM32 F3 series Cortex-M4 mixed-signals features and to develop your applications easily. It includes everything required for beginners and experienced users to get started quickly.

Based on the STM32F303VCT6, it includes an ST-LINK/V2 embedded debug tool, accelerometer, gyroscope and e-compass ST MEMS, USB connection, LEDs and pushbuttons.

The STM32F3DISCOVERY discovery board does not support STM32F313xx MCUs (1.65 V to 1.95 V power supply).

A large number of free ready-to-run application firmware examples are available on www.st.com/stm32f3discovery to support quick evaluation and development.
Key Features

    STM32F303VCT6 microcontroller featuring 256 KB Flash, 48 KB RAM in an LQFP100 package
    On-board ST-LINK/V2 with selection mode switch to use the kit as a standaloneST-LINK/V2 (with SWD connector for programming and debugging)
    Board power supply: through USB bus or from an external 3 V or 5 V supply voltage
    External application power supply: 3 V and 5 V
    L3GD20, ST MEMS motion sensor, 3-axis digital output gyroscope
    LSM303DLHC, ST MEMS system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor
    Ten LEDs:LD1 (red) for 3.3 V power onLD2 (red/green) for USB communicationEight user LEDS, LD3/10 (red), LD4/9 (blue), LD5/8 (orange) and LD6/7 (green)
    Two pushbuttons (user and reset)
    USB USER with Mini-B connector
    Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing

نظرات کاربران درباره برد STM32F3DISCOVERY

نظری در مورد این محصول توسط کاربران ارسال نگردیده است.
اولین نفری باشید که در مورد برد STM32F3DISCOVERY نظر می دهد.

ارسال نظر درباره برد STM32F3DISCOVERY

لطفا توجه داشته باشید که ایمیل شما منتشر نخواهد شد.

کد امنیتی *
captcha

برچسب های مرتبط با برد STM32F3DISCOVERY

STM32F3DISCOVERY F3DISCOVERY STM32
قیمت: 690,000 ریال
کد محصول MCU-ST-4
وضعیت موجودی نا موجود
برند ST
