Memory Metal Actuator - MigaOne - 15

Memory Metal Actuator - MigaOne - 15



Shape Memory metals were developed by NASA for the space industry, and have been used for increasing applications down on earth.For example,there have been limited studies on using these materials in robotics. They make it possible to create very light robots.

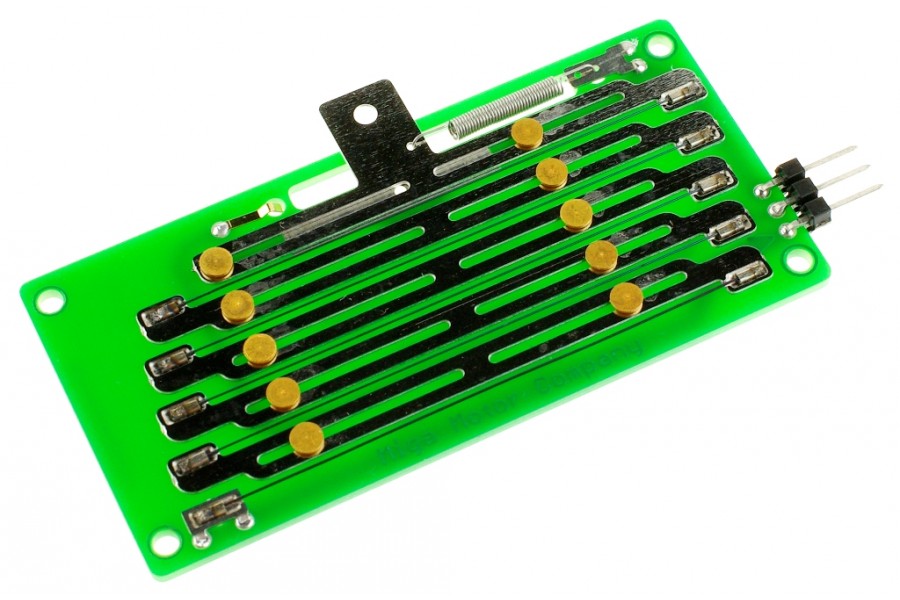

The MigaOne is a credit-card-sized memory metal actuator, with 0.325" of stroke, and three output force options. Weighing less than 1/2-ounce (12.8 grams), the wafer-thin MigaOne is the world’s thinnest actuator, standing barely a millimeter off the PCB surface. Actuation time is ~1.0 second at 5.8V, and ~0.1 second at 18V.





MigaOne actuators should be used along with the MADv5, which provides end-of-stroke detection and MOSFET power switching. The MigaOne can be driven by standard high-energy batteries or most laboratory power supplies (from 5-30 volts, depending on desired actuation time).





The MigaOne-15 provides 4.5 pounds of force, using 0.015" diameter SMA elements with 2.7ohm resistance.
  • Automotive
    • Bi-directional grill louver mechanism
    • Fuel tank door release mechanism
    • Trunk, glove compartment release mechanism
  • Consumer
    • Memory card ejector
    • Electronic latch release
    • Security doors and locks
    • Biometric sensor assist
  • Hobby/Miscellaneous
    • Grasping device
    • Undersea Core Sampling Robot
    • Point Of Use sale items
    • Latch release for ROVs
    • Pneumatic actuator replacement



  • Stroke: 0.325 inch
  • Output Force: 4.5 pounds
  • Resistance: 2.7 ohm
  • Actuation Time: 50 ms to Position Hold
  • Actuation Speed: up to 200mm/s
  • 0.015" diameter SMA elements
  • Size: 80x35mm (3.15x1.38")
  • Weight: 0.45ounces(12.8 grams)



نظرات کاربران درباره Memory Metal Actuator - MigaOne - 15

نظری در مورد این محصول توسط کاربران ارسال نگردیده است.
اولین نفری باشید که در مورد Memory Metal Actuator - MigaOne - 15 نظر می دهد.

ارسال نظر درباره Memory Metal Actuator - MigaOne - 15

لطفا توجه داشته باشید که ایمیل شما منتشر نخواهد شد.

کد امنیتی *
captcha

برچسب های مرتبط با Memory Metal Actuator - MigaOne - 15

Memory Metal Actuator MigaOne 15 فلزهای حافظه دار کنترل شونده با ولتاژ
قیمت: 3,520,000 ریال
کد محصول MOT-IMEM-3
وضعیت موجودی موجود
