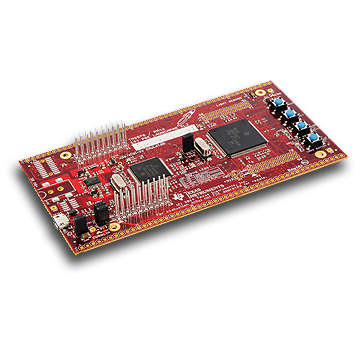

LAUNCHXL2-RM46 برد لانچپد

The Hercules LaunchPad features on-board emulation, which means you can program and debug your projects without the need for additional tools.

LAUNCHXL2-RM46 برد لانچپد

On-board emulation

The Hercules LaunchPad features on-board emulation, which means you can program and debug your projects without the need for additional tools.

BoosterPack-compatibility

Hercules LaunchPad features two 40-pin BoosterPack headers for connectivity to compatible boosterpacks that add additional functionality like wireless, displays & more.

Switches & LEDs

Two general purpose IO switched, reset switches & two LEDs are provided on-board for quick development.

What's included?

Hercules LaunchPad evaluation kit includes everything you need to get started with development on Hercules MCUs!

  • Hercules LaunchPad RM46 version
  • Micro-USB cable
  • Quick Start Guide

Why this LaunchPad?

Features a Hercules RM46x series MCU designed for safety-critical industrial and medical applications



BoosterPack connector

Two 40-pin headers

Microcontroller Features

  • 32-bit ARM® Cortex®-R4F CPUs running in lock-step
  • Integrated safety features to simplify SIL–3 applications:
    • ECC on Flash and RAM interfaces
    • Built-In Self-Test for CPU and On-chip RAMs
    • Error Signaling Module with Error Pin
    • Voltage and Clock Monitoring
  • 220MHz
  • 1.25MB Flash with ECC
  • 64kB RAM with ECC
  • 16kB flash with ECC for EEPROM emulation
  • Two 12-bit multi-buffered ADC
  • Two programmable High-End Timer (N2HET) modules
  • Multi-buffered SPI and two SPI modules
  • LIN/SCI (UART)
  • Enhanced Timing Peripherals for Motor Control (7 ePWM, 6 eCAP, 2 eQEP modules)
  • GIO and Interrupt capable pins
  • 10/100 Ethernet MAC
  • USB: 2-port USB Host Controller and one full-speed USB Device port
