EK-TM4C129EXL برد لانچپد

Features TM4C129E MCU with hardware encryption accelerators designed for data protection connected applications

EK-TM4C129EXL برد لانچپد

Features TM4C129E MCU with hardware encryption accelerators designed for data protection connected applications

Board Details

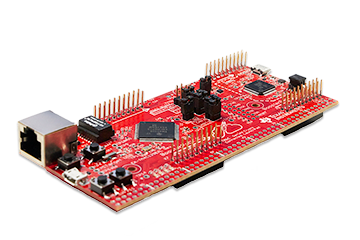

The EK-TM4C129EXL Crypto Connected LaunchPad features on-board emulation, which means you can program and debug your Internet of Things (IoT) gateway projects without the need for additional hardware tools.

BoosterPack Compatibility

Two stackable BoosterPack XL interfaces provide great connection options out of the box. These two 40-pin interfaces allow you to add support for displays, wireless interfaces, sensors and other capabilities to your projects very easily. This also offers basic compatibility with existing TM4C, MSP430 and C2000 LaunchPads.

What's Included?

The TM4C Series Crypto Connected LaunchPad includes everything you need to get started with ARM Cortex-M4F IoT application development!

Key Integration

eries devices, providing flexibility to fit precise needs. It features hardware crypto accelerators that offload data encryption and decryption functions from CPU. The advanced security features include on-board Advanced Encryption Standard (AES), Data Encryption Standard (DES), Secure Hash Algorithm (SHA) and Cyclic Redundancy Check (CRC) accelerators to increase performance in secure connected applications.

  • TM4C Crypto Connected LaunchPad evaluation board (EK-TM4C129EXL PCBA w/ MCU)
  • 90 degree 49x2 breadboard connector
  • Retractable Ethernet cable
    • Secured cloud connection demonstration with TI RTOS, WolfSSL and Exosite
    • Platform designed for data encryption applications with LaunchPad Ecosystem
    • Low-cost, feature-rich, intensive software platform for embedded gateway and controls

Specs

  • 120 MHz
  • 1MB Flash
  • 256KB SRAM
  • 6 KB EEPROM
  • USB debug cable
  • Read Me First instructions

ARM Cortex-M4 based Microcontroller

The TM4C129x MCUs are the industry’s first ARM Cortex-M4 based MCUs with integrated Ethernet MAC+PHY, enabling customers to create a new class of highly connected products bridging the cloud and amplifying the ever-growing IoT market. The TM4C129x MCUs offer a 120MHz CPU and many connectivity options, as well as on-chip data protection and an LCD controller to save board space and enable connected applications, such as IoT gateways, linked home/building automation controllers, connected human-machine interface (HMI), networked sensor gateways, and many others.

Hardware crypto accelerators

The TM4C129ENCPDT microcontroller is code-compatible to all members of the extensive TM4C S

  • CRC, AES, DES, SHA/MD5 security hardware accelerators
  • 10x I2C, 8x UART, 4x Quad-SSI, 2x CAN
  • 2x 12-bit ADCs (2MSPS)
  • 3 on-chip analog comparators, 16 digital comparators
  • Advance motion control PWM module, 2x QEI
  • USB 2.0 OTG/Host/Device
  • 10/100 Mbps Ethernet MAC+PHY



Why this LaunchPad?

Features a high performance TM4C129ENCPDT MCU with hardware Crypto accelerators designed to easily connect your ideas and products to the cloud with the data encryption. Evaluate and develop new designs for the Internet of Things with data protection functions.

BoosterPack connector

Two 40-pin headers
