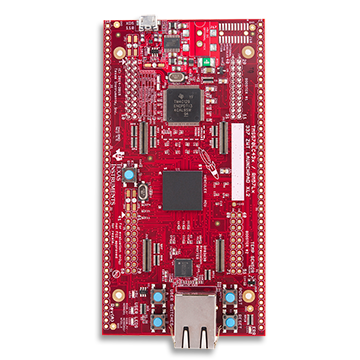

LAUNCHXL2-RM57L برد لانچپد

The Hercules LaunchPad features on-board emulation, which means you can program and debug your projects without the need for additional tools.

LAUNCHXL2-RM57L برد لانچپد

On-board emulation

The Hercules LaunchPad features on-board emulation, which means you can program and debug your projects without the need for additional tools.

BoosterPack-compatibility

Hercules LaunchPad features two 40-pin BoosterPack headers for connectivity to compatible boosterpacks that add additional functionality like wireless, displays & more.

Switches & LEDs

Two general purpose IO switches, reset switches & two LEDs are provided on-board for quick development.

What's included?

Hercules LaunchPad evaluation kit includes everything you need to get started with development on Hercules MCUs!

  • Hercules LaunchPad RM57L version
  • Micro-USB cable
  • Quick Start Guide

Why this LaunchPad?

Features a high performance Hercules RM57Lx series MCU designed for safety-critical Industrial and Medical applications. Provides unparalleled connectivity and expansion flexibility via multiple onboard connectors and a precision Ethernet PHY DP83630.



BoosterPack connector

Two 40-pin headers

Microcontroller Features

  • 32-bit ARM® Cortex®-R5F Cached CPUs running in lock-step
  • Integrated safety features to simplify SIL-3 applications:
    • ECC on CPU Caches, Flash and RAM interfaces
    • 32K I$ and 32K D$
    • Built-In Self-Test for CPU and On-chip RAMs
    • Error Signaling Module with Error Pin
    • Voltage and Clock Monitoring
  • 330MHz
  • 4MB Flash with ECC
  • 512KB RAM with ECC
  • 128KB flash with ECC for EEPROM emulation
  • Two 12-bit multi-buffered ADC
  • Two programmable High-End Timer (N2HET) Modules
  • Five Multi-buffered SPI
  • LIN/SCI (UART)
  • Enhanced Timing Peripherals for Motor Control (7 ePWM, 6 eCAP, 2 eQEP modules)
  • GIO and interrupt Capable Pins
  • Four CAN Controller (DCAN) Modules
  • 10/100 Ethernet MAC
