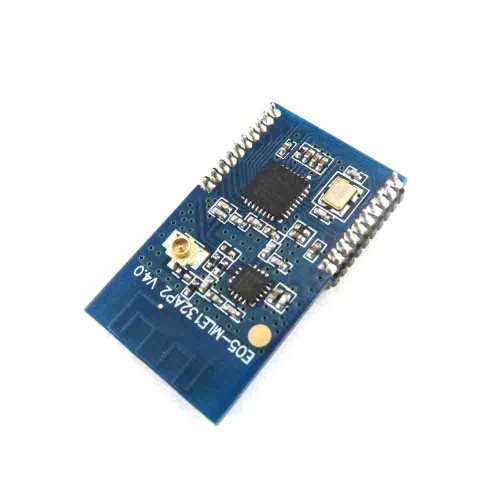

ماژول انتقال بیسیم اطلاعات NRF24LE1 + PA + LNA با برد 1 کیلومتر
Model:E05-MLE132AP2
Center frequency:2.4GHz
measured distance:1100m
max power:100mW
ماژول انتقال بیسیم اطلاعات NRF24LE1 + PA + LNA با برد 1 کیلومتر
Basic information：
Model:E05-MLE132AP2
Center frequency:2.4GHz
measured distance:1100m
max power:100mW
performance parameters：
Module Size:17.8*30.6mm
interface method:2*10*1.27mm（can use universal board or Dupont Line）
Power Supply:2.0V——3.6VDC
Measured distance:1100m
Communications levels:0.7VDD—3.6VDC
Maximum power:20dBm（about 100mW）
Gbps：250k,1M,2M,Adjustable
Emission current:95mA
Sinks current:20mA
Communication interface:Standard 51 single chip microcomputer
Transceiver length:single packet:1—32 bytes,3 FIFO buffer
RSSI support:Does not support the true meaning of RSSI,Only supports packet loss statistics
Working temps:-30℃~+85℃
Working Humidity:＜90% RH
Storage Temp:-40℃~+125℃
Operating frequency:2400MHz-2525MHz（1MHz step ）
Receiving Sensitivity:-102dBm
|
Name |
Direction |
Use |
|
|
1 |
NC |
dangling |
|
|
2 |
RST |
Input |
Low level reset pin |
|
3 |
P1.4 |
Input /output |
Single-Chip Microcomputer GPIO |
|
4 |
P1.3 |
Input /output |
Single-Chip Microcomputer GPIO |
|
5 |
P1.2 |
Input /output |
Single-Chip Microcomputer GPIO |
|
6 |
P1.1 |
Input /output |
Single-Chip Microcomputer GPIO |
|
7 |
P1.0 |
Input /output |
Single-Chip Microcomputer GPIO |
|
8 |
P0.7 |
Input /output |
Single-Chip Microcomputer GPIO |
|
9 |
P0.6 |
Input /output |
Single-Chip Microcomputer GPIO |
|
10 |
P0.5 |
Input /output |
Single-Chip Microcomputer GPIO |
|
11 |
P0.4 |
Input /output |
Single-Chip Microcomputer GPIO |
|
12 |
P0.3 |
Input /output |
Single-Chip Microcomputer GPIO |
|
13 |
PROG |
Input |
Programming is used, hung up when not in use |
|
14 |
P0.2 |
Input /output |
Single-Chip Microcomputer GPIO |
|
15 |
P0.1 |
Input /output |
Single-Chip Microcomputer GPIO |
|
16 |
P0.0 |
Input /output |
Single-Chip Microcomputer GPIO |
|
17 |
P1.6 |
Input /output |
Single-Chip Microcomputer GPIO |
|
18 |
P1.5 |
Input /output |
Single-Chip Microcomputer GPIO |
|
19 |
VCC |
power pin ， Must be 2.0 - 3.6 V |
|
|
20 |
GND |
Power supply reference to |
