درایور سروو موتورهای داینامیکسل CM-700
درایور سروو موتورهای داینامیکسل CM-700

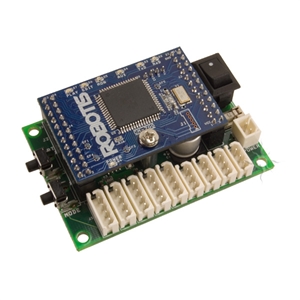

The CM-700 is a new robotis controller with an onboard programmable CPU, simultaneous TTL / RS485 (that means AX-12/18 servos and DX/RX/EX servos on the same bus) communication circuit, and ZIG-110 connector. CM-700 SUB Board is composed of a power department, connector department, switch, and an additional circuit for 5 pin peripheral devices.
Please note: The CM-700 requires an LN-101 USB Downloader to program it.
Includes:
- CM-700
- Power Cable
- Mounting Hardware
Manual
CM-700 Manual
Please note: The CM-700 requires an LN-101 USB Downloader to program it.
Includes:
- CM-700
- Power Cable
- Mounting Hardware
Manual
CM-700 Manual
![](http://www.trossenrobotics.com/images/psimages/cm700_description.png)
H/W Specification
- Weight : 37.3g
- Controller : ATMega2561
- Working Voltage
- Allowed Range : 7V ~ 35V
- Consumed Current
- When IDLE : 40mA
- Exterior I/O Maximum Current : 0.9A
- Overall Maximum Current : 10A (Fuse)
- Working Temperature : -5℃~70℃
- Internal I/O Device
- Button : 2 sets (Reset 1, Start 1)
- Temperature Sensor : 1
- Voltage Sensor : 1
- External I/O Device
- OLLO 5 pin I/O Port : 6
- 3-Pin Connector TTL Communication : 4
- 4-Pin Connector RS-485 Communication : 5
