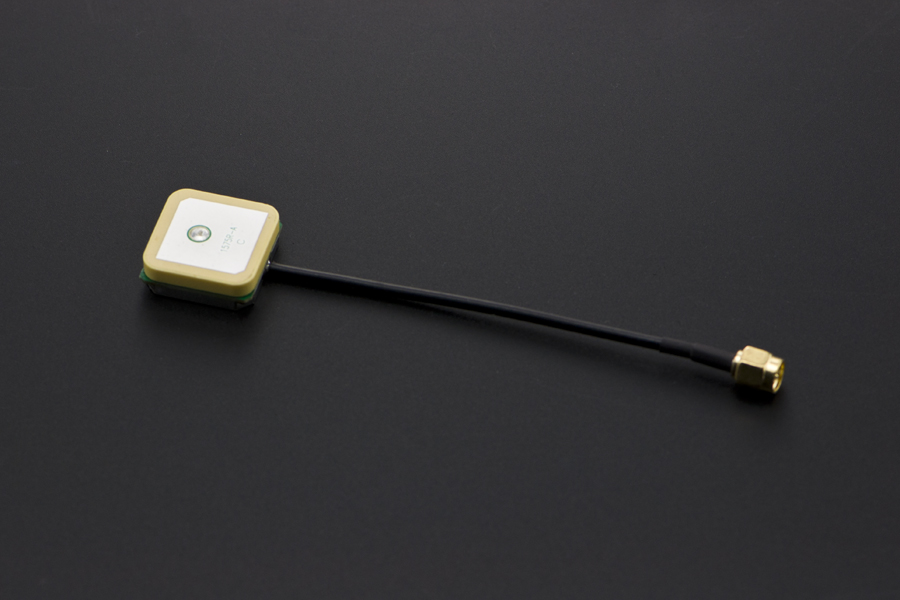

Built-in GPS Antenna (with amplifing function)

This is a built-in GPS Antenna for DFRobot LEA-6H GPS shield. This GPS Antenna also have amplifing function. Its SMA male header can adapt to most GPS/GSM modules which have MMCX interface. This antenna is so qualified that it has been used on  many navegation intruments and cellphones.

Built-in GPS Antenna (with amplifing function)

This is a built-in GPS Antenna for DFRobot LEA-6H GPS shield. This GPS Antenna also have amplifing function. Its SMA male header can adapt to most GPS/GSM modules which have MMCX interface. This antenna is so qualified that it has been used on  many navegation intruments and cellphones.



  • Working voltage: 3+0.3V
  • Current consumption: 15 mA (Typical)
  • Frequency: 1575.42mhz±4 MHz
  • Output Impedance: 50Ω
  • Total Gain: 26 dBi
  • VSWR: 1.5 (Typical)
  • Polarization: RHCP
  • Noise Figure: 1.2 (Typcial)
  • Cable long: 100mm
  • Working Temp.:-45~85C
  • Deminsiation: 25 * 25 * 8 mm (L*W*H)

نظرات کاربران درباره Built-in GPS Antenna (with amplifing function)

نظری در مورد این محصول توسط کاربران ارسال نگردیده است.
اولین نفری باشید که در مورد Built-in GPS Antenna (with amplifing function) نظر می دهد.

ارسال نظر درباره Built-in GPS Antenna (with amplifing function)

لطفا توجه داشته باشید که ایمیل شما منتشر نخواهد شد.

کد امنیتی *
captcha

برچسب های مرتبط با Built-in GPS Antenna (with amplifing function)

Built in GPS Antenna (with amplifing function) ماژول مکان یابی GPS GPS Antenna
قیمت: 1,255,000 ریال
کد محصول SEN-LOC-9
وضعیت موجودی موجود
