اورجینال Arduino Micro RETAIL

اورجینال Arduino Micro RETAIL

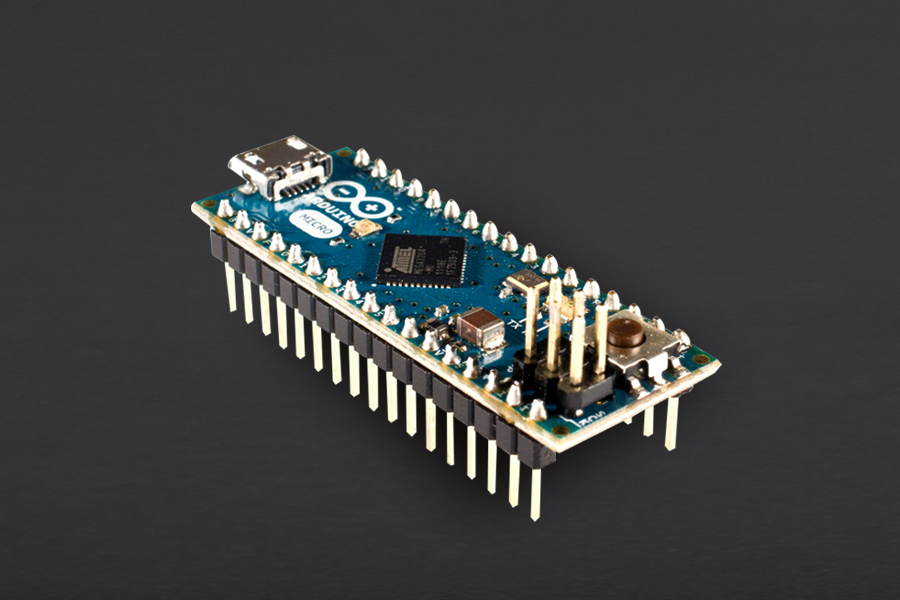

The Arduino Micro is a microcontroller board based on the ATmega32u4. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard.











The Micro is similar to the Arduino Leonardo in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port. It also has other implications for the behavior of the board; these are detailed on the getting started page.
  • Microcontroller:ATmega32u4
  • Operating Voltage:5V
  • Input Voltage (recommended):7-12V
  • Input Voltage (limits):6-20V
  • Digital I/O Pins:20
  • PWM Channels:7
  • Analog Input Channels:12
  • DC Current per I/O Pin:40 mA
  • DC Current for 3.3V Pin:50 mA
  • Flash Memory:32 KB (ATmega32u4) of which 4 KB used by bootloader
  • SRAM:2.5 KB (ATmega32u4)
  • EEPROM:1 KB (ATmega32u4)
  • Clock Speed:16 MHz



نظرات کاربران درباره اورجینال Arduino Micro RETAIL

نظری در مورد این محصول توسط کاربران ارسال نگردیده است.
اولین نفری باشید که در مورد اورجینال Arduino Micro RETAIL نظر می دهد.

ارسال نظر درباره اورجینال Arduino Micro RETAIL

لطفا توجه داشته باشید که ایمیل شما منتشر نخواهد شد.

کد امنیتی *
captcha

برچسب های مرتبط با اورجینال Arduino Micro RETAIL

Arduino Micro RETAIL Arduino برد آردوینو Micro RETAIL اورجینال Arduino Micro RETAIL
قیمت: 3,210,000 ریال
کد محصول AR-DUINO-41
وضعیت موجودی موجود
