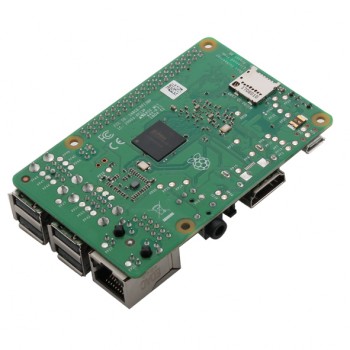

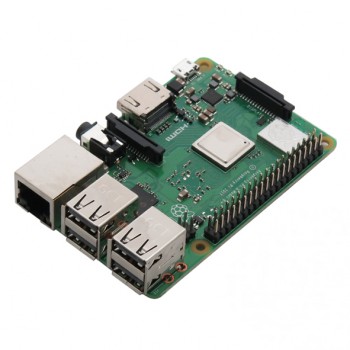

برد رسپبری پای 3 مدل B پلاس دارای هسته پردازنده 64 بیتی ، وایفای و بلوتوث داخلی
محصول جدید بنیاد رسپبری پای با نام رسپبری پای 3 مدل B Plus، دارای پردازنده Broadcom BCM2837B0, Cortex-A53 1.4GHz، رم 1GB LPDDR2 SDRAM، وای فای دو بانده 2.4 گیگاهرتز و 5 گیگاهرتز، بلوتوث 4.2، گیگابیت اترنت
Made in United Kingdom
برد رسپبری پای 3 مدل B پلاس دارای هسته پردازنده 64 بیتی ، وایفای و بلوتوث داخلی
Description
The Raspberry Pi 3 Model B+ is boasting a 64-bit quad core processor running at 1.4GHz, dual-band 2.4GHz and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT.
The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market.
The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.
Features
Dimensions : 120mm x 75mm x 34mm
Weight : G.W 75g
Processor: Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4GHz
Memory: 1GB LPDDR2 SDRAM
Connectivity: 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE; Gigabit Ethernet over USB 2.0 (maximum throughput 300Mbps); 4 × USB 2.0 ports
Access: Extended 40-pin GPIO header
Video & sound: 1 × full size HDMI; MIPI DSI display port; MIPI CSI camera port; 4 pole stereo output and composite video port
Multimedia: H.264, MPEG-4 decode (1080p30); H.264 encode(1080p30); OpenGL ES 1.1, 2.0 graphics
SD card support : Micro SD format for loading operating system and data storage
Input power: 5V/2.5A DC via micro USB connector; 5V DC via GPIO header; Power over Ethernet (PoE)–enabled (requires separate PoE HAT)
Environment : Operating temperature, 0–50°C
Package Include :
1x Raspberry PI 3 Model B Plus
کد محصول
MINCO-RAS-23
وضعیت موجودی
نا موجود
