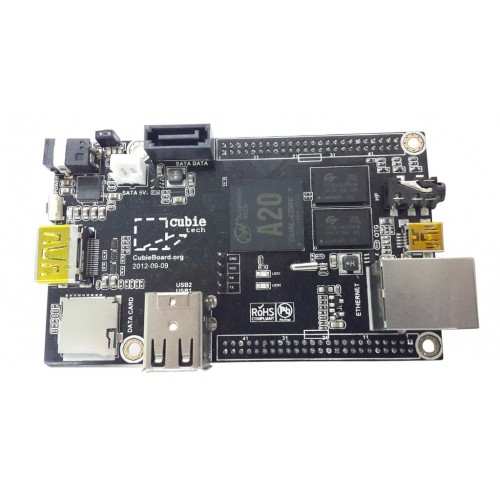

برد CubieBoard2

برد CubieBoard2

• Dual core ARM Cortex A7 processor, NEON, VFPv4, 512KB L2-Cache
• ۳۲KB I-Cache
• ۳۲KB D-Cache
• ۲۵۶KB L2 Cache
GPU • Dual core ARM Mali400 MP2, 1 vertex shader, 2 fragment shaders, OpenGL ES 2.0
Video • UHD 2160P video decoding
• ۳D video decoding
• Support various video decoding formats, including VP8, AVS, H. 264 MVC, VC-1, MPEG-1,2,4, etc
• H.264 HP video encoding up to 1080p @ 30 fps or dual-channel 720p @ 30 fps
Display • Multi-channel HD display
• Integrated HDMI 1.4
• YPbPr, CVBS, VGA
• Multiple LCD interfaces, including CPU, RGB, LVDS up to Full HD
Memory • 1GB DDR3 RAM@960M
Memory capacity up to 16G bits
• SLC/MLC/TLC/DDR NAND
- 8 flash chips, 64-bit ECC
- Memory capacity up to 64GB
- Support NAND of 5xnm, 4xnm, 3xnm, 2xnm, etc
- Support NAND of Samsung, Toshiba, Hynix, etc
Boot Devices • NAND Flash
• SPI NOR Flash
• SD Card
• USB
OS • Android 4.2 ,Ubuntu,Ubuntu server,Linaro,Debian,Fedora,Arch linux
