برد B-WL5M-SUBG1

برد B-WL5M-SUBG1

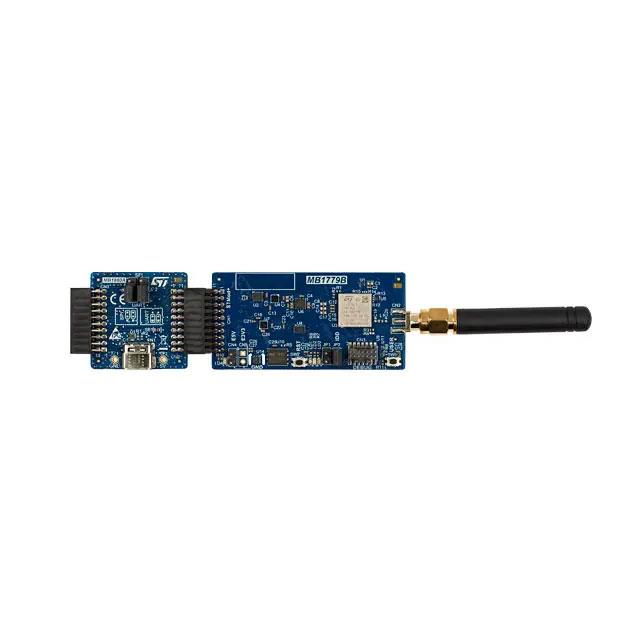

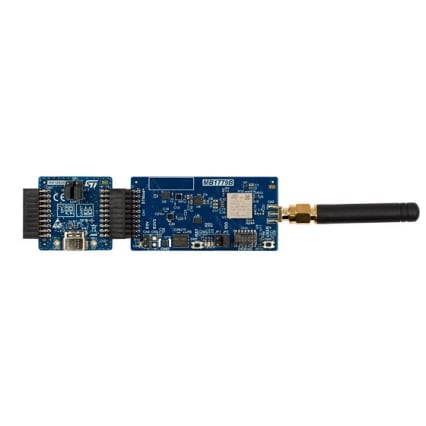

The B-WL5M-SUBG1 STM32WL connectivity expansion board provides an affordable and flexible way for users to try out new concepts and build prototypes with the STM32WL series STM32WL5MOC microcontroller module.

The B-WL5M-SUBG1 product requires a separate probe for programming and debugging. The STLINK-V3SET debugger can be connected through a MIPI10/STDC14 cable.

The B-WL5M-SUBG1 STM32WL connectivity expansion board is provided with a USB Type-C® connector on an add-on STMod+ adapter board.

The B-WL5M-SUBG1 product is provided with the STM32WL comprehensive software HAL library and various packaged software examples available with the STM32CubeWL MCU Package.

All features

  • STM32WL connectivity expansion board embedding an STM32WL5MOC module including:
    • Ultra‑low‑power STM32WL55JC microcontroller multiprotocol LPWAN dual‑core based on Arm® Cortex®‑M4/M0+, featuring 256 Kbytes of flash memory and 64 Kbytes of SRAM in a UFBGA73 package
    • RF transceiver (150 MHz to 960 MHz frequency range) supporting LoRa®, (G)FSK, (G)MSK, and BPSK modulations
  • 4‑Mbit CMOS serial flash memory and 256‑Kbit serial I2C bus EEPROM
  • MEMS sensors from STMicroelectronics:
    • Integrated high-accuracy temperature sensor
    • High-accuracy, ultra-low-power, 3-axis digital output magnetometer
    • 3D accelerometer and 3D gyroscope
    • Ultracompact piezoresistive absolute pressure sensor
  • Three user LEDs
  • User and reset push-buttons
  • Board connectors:
    • MIPI® debug
    • STMod+
    • Stubby antenna
    • USB Type-C® for power only on add‑on STMod+ adapter board
  • Flexible power supply options: external sources, or USB VBUS from the add‑on board
  • Comprehensive free software libraries and examples available with the STM32CubeWL MCU Package
  • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
