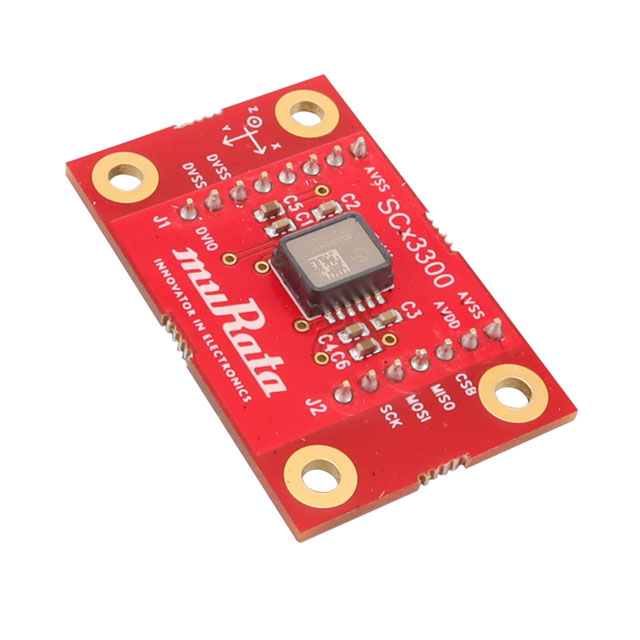

ماژول سنسور زاویه سنجSCL3300-D01  اورجینال

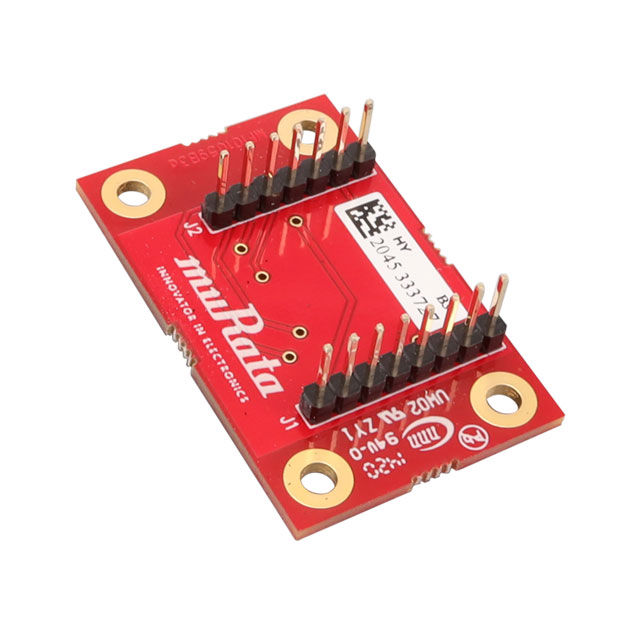

سایر تصاویر محصول

ماژول سنسور زاویه سنجSCL3300-D01 اورجینال

SCL3300-D01
3-axis inclinometer with angle output
and digital SPI interface

ماژول سنسور زاویه سنجSCL3300-D01 اورجینال

Features
 3-axis (XYZ) inclinometer
 User selectable measurement modes:
3000 LSB/g with 70 Hz LPF
6000 LSB/g with 40 Hz LPF
12000 LSB/g with 10 Hz LPF
 Angle output resolution 0.0055°/LSB
 −40°C…+125°C operating range
 3.0V…3.6V supply voltage
 SPI digital interface
 Ultra-low 0.001 °/√Hz noise density
 Excellent offset stability
 Size 8.6 x 7.6 x 3.3 mm (l × w × h)
 Proven capacitive 3D-MEMS technology
Applications
SCL3300-D01 is targeted at applications demanding high
stability and accuracy with tough environmental
requirements.
Typical applications include:
 Leveling
 Tilt sensing
 Machine control
 Structural health monitoring
 Inertial measurement units (IMUs)
 Robotics
 Positioning and guidance systems
Overview
The SCL3300-D01 is a high performance inclinometer sensor component. It is a three-axis inclinometer sensor with
angle output based on Murata's proven capacitive 3D-MEMS technology. Signal processing is done in a mixed
signal ASIC with flexible SPI digital interface. Sensor element and ASIC are packaged into 12 pin pre-molded
plastic housing that guarantees reliable operation over product's lifetime.
The SCL3300-D01 is designed, manufactured and tested for high stability, reliability and quality requirements. The
component has extremely stable output over wide range of temperature and vibration. The component has several
advanced self-diagnostics features, is suitable for SMD mounting and is compatible with RoHS and ELV directives.

قیمت: 169,380,000 ریال
کد محصول SEN-INC-17
وضعیت موجودی نا موجود
