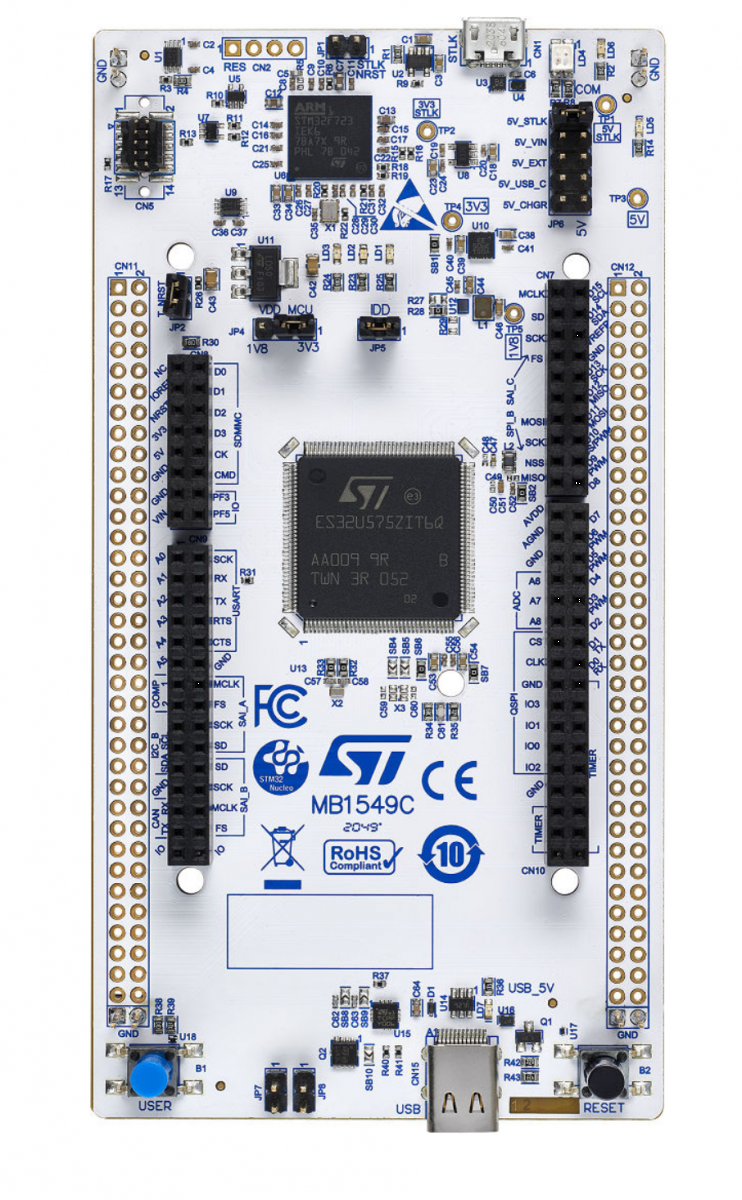

برد نوکلئو NUCLEO-U5A5ZJ-Q

STM32 Nucleo-144 development board with STM32U5A5ZJ MCU, SMPS, supports Arduino, ST Zio and morpho connectivity

برد نوکلئو NUCLEO-U5A5ZJ-Q

All features

  • Common features
    • STM32 microcontroller in an LQFP144, TFBGA225, or VFBGA264 package
    • 3 user LEDs
    • 1 user push-button and 1 reset push-button
    • 32.768 kHz crystal oscillator
    • Board connectors:
      • SWD
      • ST morpho expansion connector
    • Flexible power-supply options: ST-LINK USB VBUS, USB connector, or external sources
    • Comprehensive free software libraries and examples available with the STM32Cube MCU Package
    • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
  • Features specific to some of the boards (refer to the ordering information section of the data brief for details)
    • External or internal SMPS to generate Vcore logic supply
    • Ethernet compliant with IEEE-802.3-2002
    • USB Device only, USB OTG full speed, or SNK/UFP (full-speed or high-speed mode)
    • Board connectors:
      • ARDUINO® Uno V3 connector or ST Zio expansion connector including ARDUINO® Uno V3
      • Camera module FPC
      • MIPI20 compatible connector with trace signals
      • USB with Micro-AB or USB Type-C®
      • Ethernet RJ45
    • On-board ST-LINK (STLINK/V2-1, STLINK-V3E, or STLINK-V3EC) debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port





نظرات کاربران درباره برد نوکلئو NUCLEO-U5A5ZJ-Q

نظری در مورد این محصول توسط کاربران ارسال نگردیده است.
اولین نفری باشید که در مورد برد نوکلئو NUCLEO-U5A5ZJ-Q نظر می دهد.

ارسال نظر درباره برد نوکلئو NUCLEO-U5A5ZJ-Q

لطفا توجه داشته باشید که ایمیل شما منتشر نخواهد شد.

کد امنیتی *
captcha

برچسب های مرتبط با برد نوکلئو NUCLEO-U5A5ZJ-Q

STM32U5A5ZJ NUCLEO Arduino نوکلئو NUCLEO U5A5ZJ Q ARM cortex
قیمت: 75,260,000 ریال
کد محصول MCU-ST-65
وضعیت موجودی موجود
برند ST
