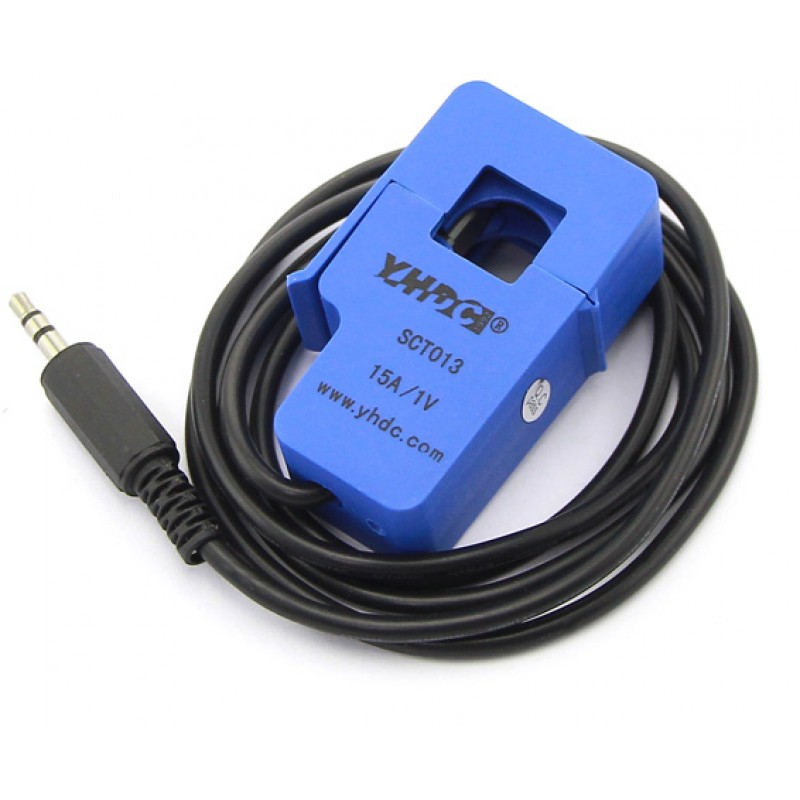

SeeedStudio Non-Invasive AC Current Sensor (15A Max)
Description
Non-invasive AC current sensor (15A max)
Used for measuring alternating current
Ferrite core material
The SeeedStudio Non-Invasive AC Current Sensor (15A Max) is a sensor used for measuring alternating current. It is particularly useful for measuring whole building electricity consumption (or generation for that matter). The split core type is particularly suitable for DIY use it can be clipped straight on to either the live or neutral wire coming into the building without having to do any high voltage electrical work.
Applications:
Suitable for the current measuring
Monitoring and protection of AC motor
Lighting equipment
Air compressor
Specifications
Input current: 0-15A AC
Output mode: 0-1V
Non-linearity: ±3%
Build-in sampling resistance(RL): 26.6O
Resistance Grade: Grade B
Work Temperature: -25°C ~ 70°C
Dielectric strength(between shell and output): 1000V AC/1min 5mA
Leading Wire in Length: 1m
Fire resistance property: In accordance with UL94-VO
