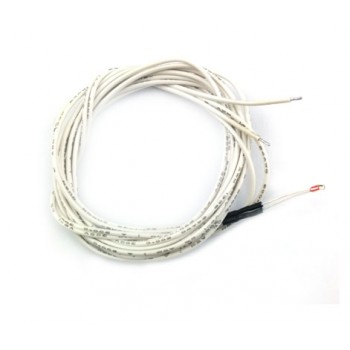

ماژول ترمیستور Thermistor NTC 100K پرینتر سه بعدی
Sensor:
100KΩ accuracy of ± 1%
B value of 3950
Cable Length 100cm
1.05MM wire diameter
Resistance head diameter 1.8mm
White high temperature Teflon wire 200C(degree) 300V
ماژول ترمیستور Thermistor NTC 100K پرینتر سه بعدی
Sensor:
100KΩ accuracy of ± 1%
B value of 3950
Cable Length 100cm
1.05MM wire diameter
Resistance head diameter 1.8mm
White high temperature Teflon wire 200C(degree) 300V
Product Applications:
1) induction cooker, electric pressure cooker, disinfection cabinet, water dispenser, microwave ovens, electric heaters and other appliances temperature control and temperature sensing.
2) office automation equipment (copiers, printers, fax machines, 3D printers, program-controlled switches, etc.) temperature measurement and temperature compensation.
3) temperature control and detection of industrial, medical, environmental, weather, food processing equipment.
4) Temperature protect your phone battery packs and chargers, and other communication products.
5) meter coil, integrated circuits, quartz crystal oscillators and thermocouple temperature compensation.
Features:
1) good stability, high reliability.
2) Wide resistance range: 1KΩ ~ 1000KΩ
3) Operating temperature range:-30C ~ +200 C
4) Single-ended lead glass encapsulated form.
