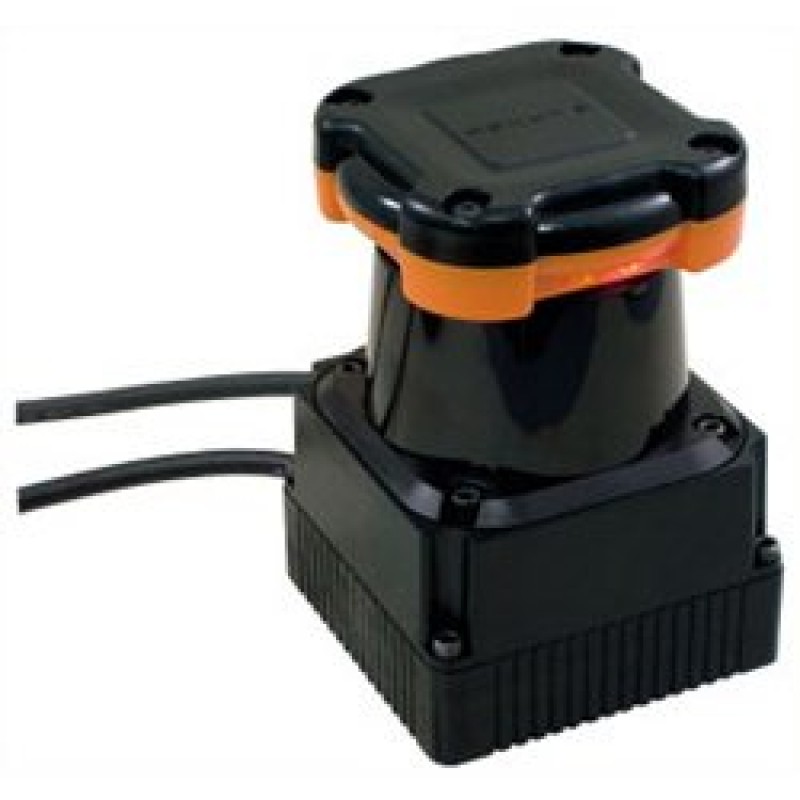

Hokuyo UTM-30LN Scanning Laser Rangefinder (30m)

Hokuyo UTM-30LN Scanning Laser Rangefinder (30m)

Description

• Power source: 12VDC±10%
• Detection Range: 0.1 to 30m
• Accuracy: 0.1 to 10m ± 30mm, 10 to 30m ±50mm
• Angular Resolution: 0.25°(360°/1,440 steps)
• Possible for outdoor Applications
• Reflective type with easy wiring
• The LN is an obstacle detection scanner that offers a single output when an object comes into the scanning zone.

The Hokuyo UTM-30LN Scanning Laser Rangefinder (30m) is suitable for security purpose as a monitor in outdoor environment. Also possible for sticking-out detection.

Features:
• Long distance (30m) and wide angle (270º)
• Reflective type with easy wiring
• This accuracy could be less reliable if the sensor receives strong light such as sun light directly in the outdoor environment

Specifications

• Power source: 12VDC±10% (Current consumptlon: Max:1A, Normal:0.7A)
• Light source: Semiconductor laser diode(?=905nm), Laser safety Class 1(FDA)
• Detection Range: 0.1 to 30m (White Square Kent Sheet 500mm or more), Max.60m 270º
• Accuracy: 0.1 to 10m:±30mm, 10 to 30m:±50mm*1
• Angular Resolution: 0.25º(360º/1,440 steps)
• Scan Time: 25msec/scan
• Sound level: Less than 25dB
• Interface: USB2.0(Full Speed) for field setting by PC
• Output: Output 1:NPN open collector 50mA or less, power less than 30V
• Connection: Power and output: 2m flying lead wire, USB: 2m cable with type-A connector
• Amblent (Temperature/Humidity): -10 to +50 degrees C, less than 85%RH(without dew and frost)
• Vibration Resistance: Double amplitude 1.5mm to 55Hz, 2 hours each in X, Y and Z direction
• Impact Resistance: 196m/s2, 10 times in X, Y and Z direction
• Weight: Approx. 370g(with cable attachment)

Useful Links

PDF File
• Datasheet

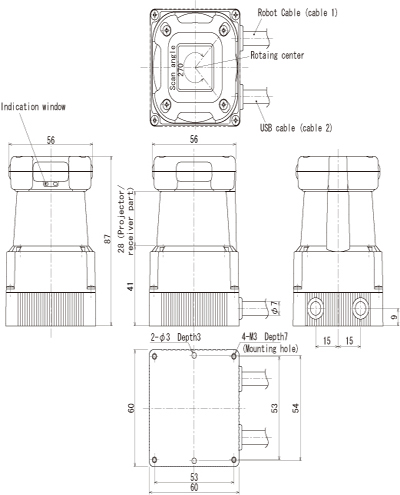

Dimensions
