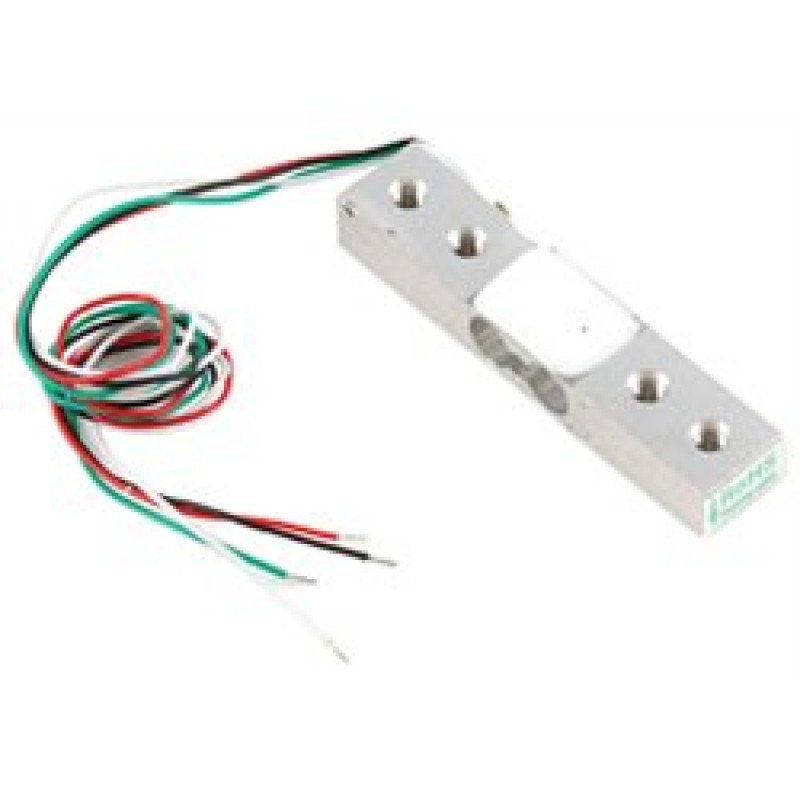

0.78 Kg Micro Load Cell

Description

• Capacity: 780g
• Wheatstone bridge sensor
• Small size: 45mm x 9.3mm x 6mm
• Plugs into the Phidgets PhidgetBridge Wheatstone Bridge Sensor Interface
• Compensated temperature range: -10°C to +40°C
• Operating temperature range: -20°C to +55°C
• RoHS compliant

0.78 Kg Micro Load Cell

Description

• Capacity: 780g
• Wheatstone bridge sensor
• Small size: 45mm x 9.3mm x 6mm
• Plugs into the Phidgets PhidgetBridge Wheatstone Bridge Sensor Interface
• Compensated temperature range: -10°C to +40°C
• Operating temperature range: -20°C to +55°C
• RoHS compliant

Wiring:
Red: 5V
Green: +
White: -
Black: GND

Specifications

  • Precision0.05%F.S
  • Capacity780g
  • Non-Linearity0.05%F.S
  • Repeatability0.05%F.S
  • Creep0.1%F.S/30min.
  • Temp. effect on zero0.05%F.S/10°C
  • Temp. effect on span0.05%F.S/10°C
  • Zero Balance±1.5%F.S
  • Compensated Temp. Range-10°C~+40°C
  • Operating Temp. Range-20°C~+55°C
  • Safe Overload120%F.S
  • Maximum Overload150%F.S

Useful Links

PDF FIles
Datasheet
Mechanical Drawing
